Polarimeter
With the ATAGO Original Measurement Engine, stable measurements are possible in just 12 seconds (4 seconds in high-speed continuous measurement mode).
After the observation tube is placed, automatic measurement and digital display is performed simply by pressing the start button.Various settings can be set comfortably and easily with the touch panel.On the Data History page, the SAC-I can recall the last 5,000 measurement and zero-setting/calibrations.
Measurement with constant temperature control is possible by purchasing the Temp Controller as a separate accessory.It is a new, simple concept to not have the temperature controller built-in.
A quartz plate that has been calibrated by the German PTB (Physical Technology Institute) is available.
Tested and certified by CONSECANA, which is composed of ORPLANA, the most eminent authority on sugar and ethanol production in the State of São Paulo, Brazil.
Complies with the International Sugar Analysis Unified Committee ICUMSA, which sets the standard for the sugar industry.
Complies with the Japanese Pharmacopoeia, which sets the standard for the pharmaceutical industry.
FDA 21 CFR Part 11 compliant software, a must-have item in the pharmaceutical industry, is included.
Connect to the RX-α / i digital refractometer models! The Brix value is directly transferred to the SAC-I to automatically calculate and display the Purity for sugar.
The SAC-i 589/882 can measure samples at both 589 nm and 882 nm wavelengths by switching the light source.
Stable and accurate measurements with temperature control.
The optical rotation is affected by the temperature of the sample, but the specific rotation specified by the Pharmacy and Food Additives Law is not a single value, but often has a certain range. Sufficient measurement can be performed by acclimating the sample to room temperature.
However, in recent years, there has been an increasing demand for constant temperature control of the sample, aiming for more accurate measurement.
For conventional temperature control methods,
(1) Circulating Water Bath
(2) Polarimeter with built in temeprature control

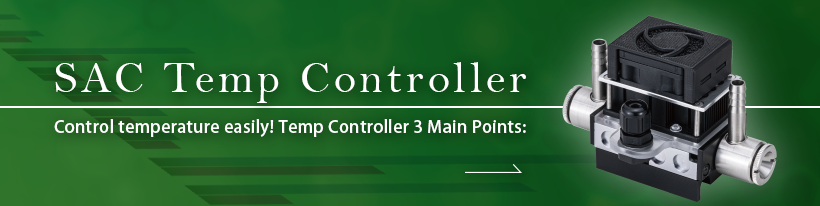

ATAGO's Temp Controller is a new method that does not fit into any of these.
Built in temperature control increases the size of the polarimeter, but ATAGO`s polarimeter maintains its small size by keeping the Temp Controller separate. It is simple, compact, and fits in the palm of your hand, making it a user-fiendly product that does not take up space. This way, existing polarimeter users who purchase this accessory get the ability to acheive temperature control as well!
Without the hassle of taking a long time to control the temperature or taking up a lot of space, it is a unique polarimeter temperature controller.
Since it has a Peltier thermo module, the temperature can be kept constant without the use of a water bath. Not having to prepare or dispose of water after use means it is hygienic and labor saving.
Since there is no water that needs to be adjusted, the temperature can be adjusted quicker. Also, because the sample container is made of stainless, the heat can be transferred more efficiently, shortening the time it takes to reach the target temperature.
The weight of the thermo module is about 1.6kg, and the temperature control part is only 240g. Very compact in the palm of your hand!
Only uses two buttons for simple temperature setting. Gets rid of the notion that measuring devices are complicated and difficult. Now anyone can easily handle them!
Symmetrical design and function that makes users want to use it. Creates a comfortable environment for measurement.
Temperature control using the Peltier thermo module is environmentally friendly because it does not cause sound/vibration stress and does not use refrigerants such as CFCs.
Model | SAC-i |
---|---|
Cat.No. | 5951 |
Range | Angle of Rotation -89.9999 to +90.0000° or -360.0000 to +360.0000° International Sugar Scale -259.0000 to +259.0000° |
Resolution | Angle of Rotation 0.0001° International Sugar Scale 0.0001°Z |
Accuracy | ①Angle of Rotation: ±0.002° (-5.0 to +5.0°) ±0.005° (-45.0 to -5.0°, +5.0 to +45.0°) ②International Sugar Scale:±0.015°Z (-130.0 to +130.0°Z) Other ranges ①Angle of Rotation:±0.010° ②International Sugar Scale:±0.030°Z * Checked by reading a standard quartz plate |
Temperature correction range for ISS | 10 to 40℃ |
Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
Dimensions & Weight | 60×36.5×21cm, 20.0kg |
Included Accessories | PolariSoft(Software) |
Output | Digital Printer DP-AD (sold separately), USB flash drive and PC - USB |
· Digital printer DP-AD (Dot matrix printer) : 3123
· Observation tube 50mm OT-50(I) (SUS) 2.5mL : RE-72080
· Observation tube 100mm OT-100(I) (SUS) 5mL : RE-72078
· Observation tube 200mm OT-200(I) (SUS) 10mL : RE-72079
· Jacketed flow tube with funnel 100mm : RE-72118
· Jacketed flow tube with funnel 200mm : RE-72119
· Unjacketed flow tube with funnel 100mm : RE-72120
· Unjacketed flow tube with funnel 200mm : RE-72121
· Unjacketed small volume observationtube 10mm long : RE-72081
· Jacketed flow tube 50mm : RE-72115
· Jacketed flow tube 100mm : RE-72116
· Jacketed flow tube 200mm : RE-72117
· Quartz control plate 34°(100°Z) : RE-72045
· Quartz control plate 17°(50°Z) : RE-72044
· Quartz control plate 8°(25°Z) : RE-72043
· Quartz Control Plate -34° (-100°Z) : RE-72050
· Quartz Control Plate -17° (-50°Z) : RE-72049
· Quartz Control Plate -8° (-25°Z) : RE-72048
· Jacketed Flow Tube (Hastelloy) 100mm : RE-72122
· Stylus pen : RE-79010
Automatic Polarimeter / Saccharimeter SAC-i
Model | SAC-i w/ Temp Controller |
---|---|
Cat.No. | 5931 |
Package Contents | ・SAC-i
・SAC Temp Controller |
Polarimeter SAC-i w/ Temp Controller
Model | SAC-i Type A Temperature Control |
---|---|
Cat.No. | 5961 |
Package Contents | • SAC-i
• Jacketed flow tube with funnel (200mm - approximate volume 15mL) * Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately. |
Special Package for Sugar industry SAC-i Type A Temperature Control
Model | SAC-i Type B without Temperature Control |
---|---|
Cat.No. | 5962 |
Package Contents | • SAC-i • Unjacketed flow tube with funnel (200mm - approximate volume 15mL |
Special Package for Sugar industry SAC-i Type B without Temperature Control
Model | SAC-i Type C Temperature Control |
---|---|
Cat.No. | 5963 |
Package Contents | • SAC-i • Jacketed flow tube (100mm) • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD • Circulating Constant Temperature Bath 60-C5 |
Special Package for Pharmaceutical industry SAC-i Type C Temperature Control
Model | SAC-i Type D without Temperature Control |
---|---|
Cat.No. | 5964 |
Package Contents | • SAC-i • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD |
Special Package for Pharmaceutical industry SAC-i Type D without Temperature Control
Model | SAC-i 589/882 |
---|---|
Cat.No. | 5952 |
Measurement Readings | Angle of Rotation
International Sugar Scale Specific Rotation Concentration Purity User scale Angle of Rotation (Temperature Compensation of Quartz Plate) Temperature (°C / °F) |
Range | Angle of Rotation:-89.9999 to +90.0000° and -360.0000 to +360.0000°
International Sugar Scale : -259.0000 to +259.0000°Z |
Resolution | Angle of Rotation : 0.0001°
International Sugar Scale : 0.0001°Z |
Accuracy | 589nm
①Angle of Rotation:±0.002° (-5.0 to +5.0°) ±0.005° (-45.0 to -5.0°, +5.0 to +45.0°) ②International Sugar Scale:±0.015°Z (-130.0 to +130.0°Z) Other ranges ①Angle of Rotation:±0.010° ②International Sugar Scale:±0.030°Z * Checked by reading a standard quartz plate 882nm ①Angle of Rotation:±0.002° (-5.0 to +5.0°) ±0.005° (-19.3 to -5.0°, +5.0 to +19.3°) ②International Sugar Scale:±0.015°Z (-130.0 to +130.0 °Z) Other ranges ①Angle of Rotation:±0.010° ②International Sugar Scale:±0.070°Z * Checked by reading a standard quartz plate |
Temperature compensation | 10 to 40℃ |
Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum)
882nm(infrared nearby) |
Dimensions & Weight | 60×36.5×21cm, 20.0kg |
Included Accessories | PolariSoft(Software) |
Output | Digital Printer DP-AD (sold separately),
Output method : RS-232C (9 pin D-Sub male connector) USB flash drive and PC - USB |
· Digital printer DP-AD (Dot matrix printer) : 3123
· Observation tube 50mm OT-50(I) (SUS) 2.5mL : RE-72080
· Observation tube 100mm OT-100(I) (SUS) 5mL : RE-72078
· Observation tube 200mm OT-200(I) (SUS) 10mL : RE-72079
· Jacketed flow tube with funnel 100mm : RE-72118
· Jacketed flow tube with funnel 200mm : RE-72119
· Unjacketed flow tube with funnel 100mm : RE-72120
· Unjacketed flow tube with funnel 200mm : RE-72121
· Unjacketed small volume observationtube 10mm long : RE-72081
· Jacketed flow tube 50mm : RE-72115
· Jacketed flow tube 100mm : RE-72116
· Jacketed flow tube 200mm : RE-72117
· Quartz control plate 34°(100°Z) : RE-72045
· Quartz control plate 17°(50°Z) : RE-72044
· Quartz control plate 8°(25°Z) : RE-72043
· Quartz Control Plate -34° (-100°Z) : RE-72050
· Quartz Control Plate -17° (-50°Z) : RE-72049
· Quartz Control Plate -8° (-25°Z) : RE-72048
· Jacketed Flow Tube (Hastelloy) 100mm : RE-72122
· Stylus pen : RE-79010
Automatic Polarimeter / Saccharimeter SAC-i 589/882
Model | AP-300 |
---|---|
Cat.No. | 5291 |
Measurement Readings | Angle of Rotation, International Sugar Scale Specific Optical Rotation Concentration and Purity |
Range | Angle of Rotation : -89.999 to +89.999° International Sugar Scale : -130.000 to +130.000°Z |
Resolution | Angle of Rotation : 0.001° International Sugar Scale : 0.001°Z |
Accuracy | Angle of Rotation Displayed value : ±0.01° (-35.00 to +35.00°) Relative precision : ±0.2% (-35.01° to -89.99° , +35.01° to +89.99°) International Sugar Scale Displayed value : ±0.03°Z (-101.00 to +101.00°Z) Relative precision : ±0.2% (-130.00 to -101.01°Z , +101.01 to +130.00°Z) (Checked by reading a standard Quartz Plate) |
Temperature compensation | 18.0 to 30.0° for ISS |
Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
Output | • Digital Printer DP-AD (Optional) • RS-232C |
Dimensions & Weight | 48.5×28.5×17.5cm, 14.4kg |
· Special Packages Type A Temperature Controlled : CAT.NO.5296
· Special Packages Type B Temperature Compensation : CAT.NO.5297
· Digital printer DP-AD (Dot matrix printer) : 3123
· Observation tube 50mm long OT-50 (A) 2.5mL : RE-72056
· Observation tube 100mm OT-100(A) (SUS) 5mL : RE-72054
· Observation tube 200mm long OT-200 (A) 10mL : RE-72055
· Jacketed flow tube 50mm : RE-72115
· Jacketed flow tube 100mm : RE-72116
· Jacketed flow tube 200mm : RE-72117
· Jacketed flow tube with funnel 100mm : RE-72118
· Jacketed flow tube with funnel 200mm : RE-72119
· Quartz control plate 34°(100°Z) : RE-72045
· Quartz control plate 17°(50°Z) : RE-72044
· Quartz control plate 8°(25°Z) : RE-72043
· Quartz Control Plate -34° (-100°Z) : RE-72050
· Quartz Control Plate -17° (-50°Z) : RE-72049
· Quartz Control Plate -8° (-25°Z) : RE-72048
· Jacketed Flow Tube (Hastelloy) 100mm : RE-72122
* Calibration Certificate : Contact an ATAGO representative for details.
· Deck glass : RE-6712
· Rubber packing for observation tube : RE-78020
· Light source unit : RE-74806
· Printer paper (regular) for Thermal printer : RE-8412
· Printer paper (long-term storage) for Thermal printer : RE-8414
· Printer paper for Dot matrix printer : RE-89403
· Ribbon cassette : RE-89402
· Ring nut for observation tube : RE-72057
Automatic Polarimeter AP-300
Model | AP-300 w/ Temp Controller |
---|---|
Cat.No. | 5293 |
Package Contents | ・AP-300
・AP Temp Controller ・Sample Chamber Cover ・Inner Lid (For Tube 100mm) |
Polarimeter AP-300 w/ Temp Controller
Model | AP-300 Type A Temperature Control |
---|---|
Cat.No. | 5296 |
Package Contents | • AP-300
• Jacketed flow tube with funnel (200mm - approximate volume 15mL) • Inner Lid (For Tube 200mm) * Circulating Constant Temperature Bath 60-C5 (Cat.No.1923) sold separately. |
Special Package for Sugar industry AP-300 Type A Temperature Control
Model | AP-300 Type B without Temperature Control |
---|---|
Cat.No. | 5297 |
Package Contents | • AP-300
• Unjacketed flow tube with funnel (200mm - approximate volume 15mL • Inner Lid (For Tube 200mm) |
Special Package for Sugar industry AP-300 Type B without Temperature Control
Model | AP-300 Type C Temperature Control |
---|---|
Cat.No. | 5294 |
Package Contents | • AP-300
• Jacketed flow tube (100mm) • Inner Lid (For Tube 100mm) • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD • Circulating Constant Temperature Bath 60-C5 |
Special Package for Pharmaceutical industry AP-300 Type C Temperature Control
Model | AP-300 Type D without Temperature Control |
---|---|
Cat.No. | 5295 |
Package Contents | • AP-300 • Quartz Control Plate (8°, 17°, or 34°) • Digital printer DP-AD • Printer paper for DP-AD • Ribbon cassette for DP-AD |
Special Package for Pharmaceutical industry AP-300 Type D without Temperature Control
Model | Po-1 |
---|---|
Cat.No. | 5050 |
Measurement item | Angle of Rotation ※Angle of rotation conversion to 100mm and 200mm optical path length., Specific Rotation, Concentration,Temperature |
Range | Angle of Rotation: These ranges are measured by the device’s 20mm light path. These are convertible to below ranges: -25.0 to +25.0° with a 100mm observation tube -50.0 to +50.0° with a 200mm observation tube Temperature:5.0 to 40.0℃ |
Accuracy | Angle of Rotation(°): ±0.1°(at 20℃) |
Wavelength | 589nm |
Measurement Time | About 7 seconds |
Power Supply | Size AAA alkaline battery × 4 |
International Protection Class | IP67 |
Dimensions & Weight | 160×101×38mm,325g (main unit only) |
· Standard liquid Repo-series : RE-99110
· MAGIC™ for RePo : RE-79000
· RePo Small Volume Adapter : RE-72093
· RePo Reduced Optical Path Adapter 5mm : RE-72094
· RePo Reduced Optical Path Adapter 5mm(Adapter only) : RE-72095
· RePo Reduced Optical Path Adapter 5mm(Glass Cell only) : RE-72096
· RePo Reduced Optical Path Adapter 10mm : RE-72097
· RePo Reduced Optical Path Adapter 10mm(Adapter only) : RE-72098
· RePo Reduced Optical Path Adapter 10mm(Glass Cell only) : RE-72099
· Beaker 100mL : RE-79423
· Syringe Filter Orange 45 (100pcs) : RE-79420
· Syringe 20mL (3pcs) : RE-79421
· Easy Filter (100pcs) : RE-79422
Portable Polarimeter Po-1
Model | POLAX-2L |
---|---|
Cat.No. | 5223 |
Range | Angle of rotation : -179.95° to +180.00° International sugar scale : -130.0°Z to +130.0°Z |
Resolution | Angle of rotation : 0.05° International sugar scale : 0.1°Z |
Accuracy | Angle of rotation : ±0.10° International sugar scale : 0.3°Z |
Temperature compensation | 5 to 40°C |
Measurement Wavelength | 589nm (equivalent to the sodium-D line spectrum) |
Dimensions & Weight | 43×22×30cm, 10.3kg (Main Unit only) |
Included Accessories | Observation tubes : 100mm tube and 200mm tube / each |
· Quartz control plate 34°(100°Z) : RE-72045
· Quartz control plate 17°(50°Z) : RE-72044
· Quartz control plate 8°(25°Z) : RE-72043
· Quartz Control Plate -34° (-100°Z) : RE-72050
· Quartz Control Plate -17° (-50°Z) : RE-72049
· Quartz Control Plate -8° (-25°Z) : RE-72048
* Calibration Certificate : Contact an ATAGO representative for details.
· Observation tube 50mm long OT-50(P) 2.5mL : RE-6722
· Observation tube 100mm long OT-100 (P) 5mL : RE-6720
· Observation tube 200mm long OT-200 (P) 10mL : RE-6721
· Small volume tube 100mm long (OT-100M) : RE-6708
· Deck glass : RE-6712
· Rubber packing for observation tube : RE-78020
· Rubber packing for small volume tube : RE-6715
· Ring nut for small volume tube : RE-6717
· Midget fuse (1A) : RE-5784
· Ring nut for observation tube : RE-72057
Polarimeter POLAX-2L
Model | POLAX-2L w/ Temp Controller |
---|---|
Cat.No. | 5224 |
Package Contents | ・POLAX-2L
・POLAX Temp Controller |
Polarimeter POLAX-2L w/ Temp Controller
Model | SAC Temp Controller |
---|---|
Cat.No. | 5900 |
Resolution | 0.1°C |
Temperature setting range | Constant temperature range 10°C~50°C (Lower limit environmental temperature -10 °C) |
Power Supply | AC100-240V 50/60Hz |
Constant-Temperature Accuracy | ±0.2°C |
Dimensions & Weight | Temperature control section
Temperature control part (upper and lower) weight about 240g observation tube weight about 170g Operation Unit: 130(W)x130(D)x82(H)mm Approx.1.2 kg |
SAC Temp Controller
Model | AP Temp Controller |
---|---|
Cat.No. | 5901 |
Resolution | 0.1°C |
Temperature setting range | Constant temperature range 10°C~50°C (Lower limit environmental temperature -10 °C) |
Power Supply | AC100-240V 50/60Hz |
Constant-Temperature Accuracy | ±0.2°C |
Dimensions & Weight | Temperature control section
Temperature control part (upper and lower) weight about 240g observation tube weight about 170g Operation Unit: 130(W)x130(D)x82(H)mm Approx.1.2 kg |
AP Temp Controller
Model | POLAX Temp Controller |
---|---|
Cat.No. | 5902 |
Resolution | 0.1°C |
Temperature setting range | Constant temperature range 10°C~50°C (Lower limit environmental temperature -10 °C) |
Power Supply | AC100-240V 50/60Hz |
Constant-Temperature Accuracy | ±0.2°C |
Dimensions & Weight | Temperature control section : 121(W)x47(D)x73(H)mm
Operation Unit : 130(W)x130(D)x82(H)mm Temperature control part + Operation Unit : Approx.1.43kg observation tube : Approx.170g |
POLAX Temp Controller
Model | DP-AD |
---|---|
Cat.No. | 3123 |
Compatible models | AP-300
PMM-1000 RX-i series DD-7 SAC-i |
Printing Method | Dot matrix printing |
Power Supply | From AC adapter (Input voltage:AC100 to 240V) |
Dimensions & Weight | 11×18×9cm, 470g
(Main Uint only) |
Power consumption | 7VA |
· Printer paper for Dot matrix printer : RE-89403
· Ribbon cassette : RE-89402
Digital printer DP-AD
Model | 60-C5 |
---|---|
Cat.No. | 1923 |
Tank Capacity | 1.0 lit |
Resolution | 0.1℃ |
Temperature Setting Range | 10 to 60°C (water) |
Temp.control | PID control method using a thermo-module |
Dimensions & Weight | 20.4×33.6×28.9cm, 9.0kg |
Flow Rate | 6 lit / min |
Circulating Constant Temperature Bath 60-C5
