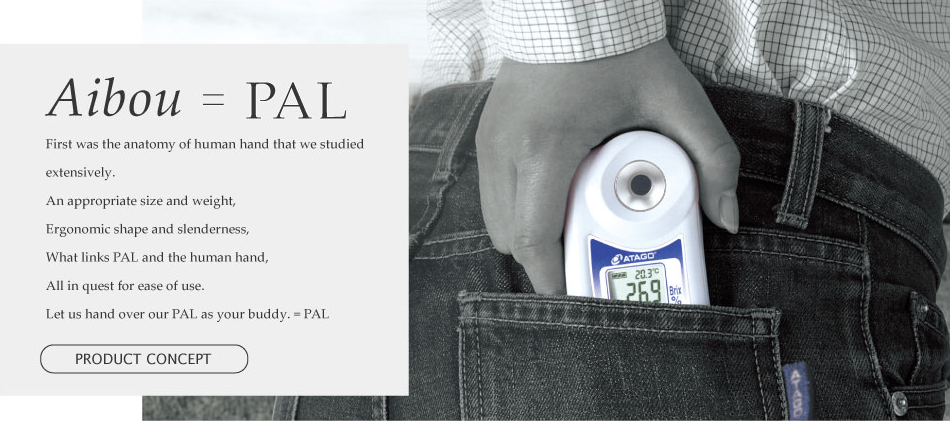

Aibou=PAL First was the anatomy of human hand that we studied extensively… PROCUCT CONCEPT

PRODUCT LINEUP

Popular Model

PAL-3

Wide & High Accuracy

PAL-3

PAL-1

The Most Popular

PAL-1

PAL-α

Wide Range

PAL-α

PAL-H

High Temperature

PAL-H

PAL-S

Milky sample

PAL-S

PAL-BX/RI

Brix & Refractive Index

PAL-BX/RI

PAL-RI

Refractive Index

PAL-RI

PAL-2

Brix

PAL-2

PAL-Loop

Brix

PAL-Loop

SDGsPAL-SDGs

About SDGs

PAL-SDGs

COVID-19 Disinfection series

Special scales

PAL Special scales list

Model Scale
PAL-96S Soup
Baume of Kansui
Ramen Meister Set Soup
Salt
Dashi Meister Set Dashi
Salt
PAL-98S Condiment
PAL-Pâtissier Brix
Baume
Model Scale
PAL-102S Cutting oil
PAL-AntiRust Anti-Rust Agent
PAL-Release Agent Releasing Agent
Model Scale
PAL-COFFEE Coffee (Brix)
PAL-COFFEE (TDS) Coffee (TDS)
PAL-COFFEE (BX/TDS) Coffee (Brix&TDS)
Model Scale
PAL-88S Propylene glycol
Freezing point℃
PAL-91S Ethylene glycol
Freezing point℃
Model Scale
PAL-Tea Tea
Model Scale
PAL-Cleaner Dextran
PAL-Hydrocarbon Cleaner Hydrocarbon Cleaner
contamination
Model Scale
PAL-MILK Non-fat milk solids
PAL-BUTYRO Butyro
Model Scale
PAL-Urea Urea
Model Scale
PAL-Whiskey Ethyl alcohol (mL/100mL)
PAL-Vodka Ethyl alcohol (mL/100mL)
PAL-Tequila Ethyl alcohol (mL/100mL)
PAL-Shochu Ethyl alcohol (mL/100mL)
PAL-Gin Ethyl alcohol (mL/100mL)
PAL-Rum Ethyl alcohol (mL/100mL)
PAL-Brandy Ethyl alcohol (mL/100mL)
PAL-Plato Plato
Model Scale
PAL-1 Brix
PAL-11S Serum protein
PAL-42S
PAL-42S
Cesium chloride
PAL-53S Copper sulfate(Concentration)
PAL-54S Copper sulfate(S.G.)
Model Scale
PAL-33S Ethyl alcohol(mL/100mL)
PAL-34S Ethyl alcohol(g/100g)
PAL-36S Methyl alcohol
PAL-37S Isopropyl alcohol (g/100g)
PAL-131S Isopropyl alcohol (mL/100mL)
PAL-85S Polyvinyl alcohol
Model Scale
PAL-DOG&CAT Dog&Cat Urine(S.G.)
PAL-DOG Dog Urine(S.G.)
PAL-CAT Cat Urine(S.G.)
PAL-RABBIT Rabbit Urine(S.G.)
Model Scale
PAL-39S H₂O₂
PAL-40S Sodium hydroxide
PAL-121S Potassium hydroxide
Model Scale
PAL-Colostrum Colostrum
Model Scale
PAL-12S Dextran
PAL-14S
PAL-14S
Fructose
PAL-15S
PAL-15S
Glucose
PAL-16S
PAL-16S
HFCS-42
PAL-17S
PAL-17S
HFCS-55
PAL-18S
PAL-18S
Inverted suger
PAL-19S
PAL-19S
Lactose
PAL-20S
PAL-20S
Maltose
PAL-21S
PAL-21S
Dextran
Model Scale
Koi Meister Set Brine
pH
Model Scale
PAL-2 Brix
PAL-22S Honey Moisture
Model Scale
PAL-12S Dextran
PAL-13S
PAL-13S
Creatine
PAL-23S Glycerin (Low)
PAL-24S Glycerin (High)
PAL-25S
PAL-25S
Inulin
PAL-26S
PAL-26S
Mannitol
PAL-31S
PAL-31S
Formic acid
PAL-32S Phosphoric acid
PAL-51S
PAL-51S
Sodium bromide
PAL-55S
PAL-55S
Magnesium sulfate
PAL-64S Sodium bicarbonate
PAL-65S Sodium tartrate
PAL-66S
PAL-66S
Potassium oxalate
PAL-68S
PAL-68S
Potassium dichromate
PAL-70S
PAL-70S
Potassium phosphate
PAL-72S
PAL-72S
Sodium tungstate
PAL-121S Potassium hydroxide
Model Scale
PAL-03S Brine (g/100g)
PAL-106S Brine (g/100mL)
PAL-04S Brine
PAL-05S Baume of Brine
Model Scale
PAL-121S Potassium hydroxide
Model Scale
PAL-06S Seawater
PAL-07S Seawater specific gravity
PAL-08S Baume of Seawater
PAL-Fish Tank Seawater
Model Scale
PAL-03CS Snow-melting Agent (Sodium chloride)
PAL-03S Snow-melting Agent (Sodium chloride)
PAL-41S Snow-melting Agent(Calcium chloride)
PAL-43S Snow-melting Agent(Magnesium chloride)
Model Scale
PAL-27S Soymilk
PAL-43S Magnesium chloride
Model Scale
PAL-Soil Soil Moisture
Soil sediment moisture content
Model Scale
PAL-Dried Fruit Moisture Moisture
Model Scale
PAL-BX/RI Brix + Refractive Index
PAL-RI Refractive Index
Model Scale
PAL-29S Citric acis
PAL-30S Acetic acid
PAL-32S Phosphoric acid
PAL-64S Sodium bicarbonate
PAL-65S Sodiun tartrate
PAL-70S Potassium phosphate
Model Scale
PAL-38S Dimethyflormamide
Model Scale
PAL-Moisture Moisture
Model Scale
PAL-23S Glycerin (Low)
PAL-24S Glycerin (high)
PAL-30S Acetic acid
PAL-31S
PAL-31S
Formic acid
PAL-32S Phosphoric acid
PAL-44S
PAL-44S
Lithium chloride
PAL-45S
PAL-45S
Barium chloride
PAL-46S
PAL-46S
Cobalt chloride
PAL-47S
PAL-47S
Ferric chloride
PAL-48S
PAL-48S
Strontium chloride
PAL-49S
PAL-49S
Potassium chloride
PAL-50S
PAL-50S
Potassium bromide
PAL-51S
PAL-51S
Sodium bromide
PAL-52S
PAL-52S
Potassium iodide
PAL-53S Copper sulfate
PAL-54S Copper sulfate
PAL-55S
PAL-55S
Magnesium sulfate
PAL-56S
PAL-56S
Potassium sulfate
PAL-57S
PAL-57S
Nickel sulfate
PAL-58S
PAL-58S
Sodium sulfate
PAL-59S
PAL-59S
Zin sulfate
PAL-60S
PAL-60S
Silver nitrate
PAL-61S
PAL-61S
Sodium nitrate
PAL-62S
PAL-62S
Potassium carbonate
PAL-63S
PAL-63S
Sodium carbonate
PAL-64S Sodium bicarbonate
PAL-67S
PAL-67S
Potassium chlomate
PAL-68S
PAL-68S
Potassium dichromate
PAL-69S
PAL-69S
Sodium thiosulfate
PAL-70S Potassium phosphate
PAL-71S
PAL-71S
Sodium molybdate
PAL-72S
PAL-72S
Sodium tungstate
PAL-121S Potassium hydroxide

Pocket Refractometer [Product details]

Peracetic acid Refractometer PAL-Peracetic acid

The concentration of peracetic acid can be easily measured in 3 steps.
*For solutions of peracetic acid in water only.
Specifications
Model PAL-Peracetic acid
Cat.No. 4557
Range 10-1000ppm
Accuracy Approximately ± 50~100 ppm
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-Peracetic acid

Peracetic acid Refractometer PAL-Peracetic acid

Close

Hypochlorous acid Refractometer PAL-Hypochlorous acid

The concentration of hypochloroous acid can be easily measured in 3 steps.
*For solutions of hypochloroous acid in water only.
Specifications
Model PAL-Hypochlorous acid
Cat.No. 4555
Range 50-550ppm
Accuracy Approximately ±50ppm
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

· Reference solution (0.04% Citrate acid solution) : RE-130004

PAL-Hypochlorous acid

Hypochlorous acid Refractometer PAL-Hypochlorous acid

Close

Ethyl alcohol Refractometer PAL-COVID-19

This model is specially designed to measure Ethyl Alcohol % used as sanitizer.
Specifications
Model PAL-COVID-19
Cat.No. 4553
Resolution 0.1%
Accuracy ±1% (*±3% after dilution)
Temperature compensation 5 to 30℃
Ambient Temperature 10 to 30℃
Display range 0.0 to 100.0mL/100mL(%)
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-COVID-19

Ethyl alcohol Refractometer PAL-COVID-19

Close

Digital Hand-held PAL-3

Designed with a full Range (Brix 0.0 to 93.0%), the PAL-3 works perfectly for measuring almost any samples.This model has been modified to have a high measurement accuracy at +/-0.1% Brix, the highest accuracy model in PAL series.
Specifications
Model PAL-3
Cat.No. 3830
Range Brix : 0.0 to 93.0 %
Resolution Brix : 0.1%
Temperature : 0.1゚C
Accuracy ±0.1 %
Temperature compensation 10 to 100 ゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· STRAP : RE-39410

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· 10% Sucrose (±0.03%) : RE-110010

· 20% Sucrose (±0.03%) : RE-110020

· 30% Sucrose (±0.03%) : RE-110030

· 40% Sucrose (±0.04%) : RE-110040

· 50% Sucrose (±0.05%) : RE-110050

· 60% Sucrose (±0.05%) : RE-110060

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

* Calibration Certificate : Contact an ATAGO representative for details.

PAL-3

Digital Hand-held PAL-3

Close

Digital Hand-held PAL-1

The PAL-1 works perfectly in measuring almost any fruit juice, food, or drink, such as soup, sauce, ketchup, tomato sauce, low-sugar jam, or marmalade. PAL series comes with Data Transmission Function with NFC(Near Field Communication)technology.Data history can be accessed by bringing PAL-NFC to any Android devices or PC-linked USB NFC Reader.
Specifications
Model PAL-1
Cat.No. 3810
Range Brix 0.0 to 53.0 %
Resolution Brix 0.1%
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-1

Digital Hand-held PAL-1

Close

Digital Hand-held PAL-1 BLT/i

PAL-1 BLT / i is equipped with Bluetooth® and can transfer data to the "dedicated app ATAGO Logger", that

can be downloaded for free from the App Store.
Specifications
Model PAL-1 BLT/i
Cat.No. 3810i
Scale Brix
Range Brix 0.0 to 53.0 %
Resolution Brix 0.1%
Accuracy ±0.2%
Temperature compensation 10 to 100 ゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-1 BLT/i

Digital Hand-held PAL-1 BLT/i

Close

Digital Hand-held PAL-1 BLT/A+W

PAL-1 BLT / A + W is equipped with Bluetooth® and can transfer the data not only to PCs but also to tablets and smartphones for Android.
Communication software ''ATAGO Logger'' can be used free of charge from the Warranty Registration Form.
Specifications
Model PAL-1 BLT/A+W
Cat.No. 3810A
Range Brix 0.0 to 53.0 %
Output specification Bluetooth Ver. 2.1+EDR
Communicative range : about 3 to 7m
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-1 BLT/A+W

Digital Hand-held PAL-1 BLT/A+W

Close

Digital Hand-held PAL-α

Released on ATAGO's 65th Anniversary, the PAL-α is a special model with a wide brix range (0-85%) offered at a very reasonable price. PAL-α is useful for measuring most kinds of samples as well as samples that are in the cooking process. Designed with a water resistant feature, the PAL-α can be washed under running water. PAL-α is equipped with the same great features as the other PAL units.
Specifications
Model PAL-α
Cat.No. 3840
Range 0.0 to 85.0 %
Resolution Brix : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2 %
Temperature compensation 10 to 100 ゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· 30% Sucrose (±0.03%) : RE-110030

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

* Calibration Certificate : Contact an ATAGO representative for details.

PAL-α

Digital Hand-held PAL-α

Close

Digital Hand-held "Pocket" Refractometer PAL-H

Mode H™ Technology measure high temperature sample in 2 seconds

Samples with high temperature such as ramen soup, tare sauce for beef bowl, syrup, jam, soy milk etc. had to wait 15 to 20 seconds for measurement.The PAL-H is a high temperature sample, and it has Mode H that can perform stable measurements at a high speed of 2 seconds. "
Specifications
Model PAL-H
Cat.No. 3870
Range Brix : 0.0 to 93.0%
Resolution Brix : 0.5%
Accuracy ±0.5%
Temperature compensation 10 to 100℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-H

Digital Hand-held "Pocket" Refractometer PAL-H

Close

Digital Hand-held PAL-S

Improved Repeatability with Mode S™ Technology.

Mode S™ is the solution to fluctuating measurement values.Ideal for fatty and/or dark samples, such as dairy products.
Specifications
Model PAL-S
Cat.No. 3860
Range Brix : 0.0 to 93.0 %
Resolution Brix : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-S

Digital Hand-held PAL-S

Close

Digital Hand-held PAL-BX/RI

PAL-BX/RI has dual scales of Brix full range : Brix 0.0 to 93.0%, high measurement accuracy : Brix ±0.1% and Refractive Index (resolution 0.0001). RI and measurement temperature will continuously scroll across the display. The PAL-BX/RI works perfectly for measuring almost any sample.
Specifications
Model PAL-BX/RI
Cat.No. 3852
Scale Brix
Refractive Index
Range Brix : 0.0 to 93.0 %
Refractive Index :1.3306 to 1.5284
Temperature : 5 to 45゚C
Accuracy Brix : ±0.1%
Refractive Index : ±0.0003 (water at 20゚C)
Temperature compensation 10 to 100゚C (Brix only)
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-BX/RI

Digital Hand-held PAL-BX/RI

Close

Digital Hand-held PAL-RI

The long-awaited "Pocket" digital and compact sized PAL-RI was released.When the start key is pressed after placing some droplets of sample on the prism, the Refractive Index (resolution 0.0001) and temperature °C of the measurement will be displayed continuously.
Specifications
Model PAL-RI
Cat.No. 3850
Scale Refractive Index
Range Refractive Index:1.3306 to 1.5284
Temperature 5 to 45゚C
Resolution Refractive Index : 0.0001
Temperature : 0.1゚C
Accuracy Refractive Index:±0.0003
(water at 20゚C)
Measurement Temperature 5 to 45゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-RI

Digital Hand-held PAL-RI

Close

Digital Hand-held PAL-2

Since the measurement range of PAL-2 is Brix 45.0 - 93.0%, it can measure various high concentration samples such as jam, marmalade, jelly, honey and concentrated juice.The International Protection class of PAL-2 is IP65, so it can clean thick samples under running water.If you measure boiling jam or marmalade, we recommend PAL-H
Specifications
Model PAL-2
Cat.No. 3820
Range Brix : 45.0 to 93.0 %
Resolution Brix : 0.1%
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-2

Digital Hand-held PAL-2

Close

Digital Hand-held PAL-LOOP

Released on ATAGO's 70th Anniversary, the PAL-LOOP is a special model with new Continuous Measurement feature to give you extra method tailored to meet your needs - select either the new continuous and conventional single measurement mode. Since the measurement range of PAL-LOOP is Brix 0.0 - 85.0%, it can be used to measure almost any samples.
Specifications
Model PAL-LOOP
Cat.No. 3842
Measurement mode 1. Single measurement
2. Continuous measurement
Range Brix : 0.0 to 85.0 %
Resolution Brix : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2 %
Temperature compensation 10 to 100 ゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-LOOP

Digital Hand-held PAL-LOOP

Close

Digital Hand-held''Pocket'' Refractometer PAL-SDGs

Products made by applying the Sustainable Development Goals (SDGs) in mind.

Functionally brand new products in mint condition are made using aesthetically defective parts such as the ones with line scratches that do not pass the appearance test or functional parts from nonrepairable units. This does not affect product usability or functionality.
Specifications
Model PAL-SDGs
Cat.No. 3890
Range Brix 0.0 to 40.0 %
Resolution Brix 0.1%
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-SDGs

Digital Hand-held''Pocket'' Refractometer PAL-SDGs

Close

Digital Hand-held PAL-Pâtissier

NEW PAL Series, PAL-Pâtissier debut for pâtissiers. PAL-Pâtissier has dual scale of Brix and Baume, this is ideal refractometer for cooking sweets. Wide range of 0.0-85.0 Brix can be measured.
Specifications
Model PAL-Pâtissier
Cat.No. 4508
Scale Brix
Sugar Baume
Range Brix : 0.0 to 85.0 %
Sugar Baume : 0 to 45°
Resolution Brix : 0.1 %
Sugar Baume : 1°
Accuracy Brix : ±0.2 %
Sugar Baume : ±1°
Temperature compensation 10 to 100°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-Pâtissier

Digital Hand-held PAL-Pâtissier

Close

Honey Refractometer PAL-22S

The "Pocket" Honey Refractometer, PAL-22S can measure the % water content of honey easily and displays readings digitally. Comfortable, easy to use, light & compact. Measurements can be taken anywhere.
Specifications
Model PAL-22S
Cat.No. 4422
Scale Honey moisture
Range Honey moisture : 12.0 to 30.0 %
Resolution Honey moisture : 0.1%
Accuracy ±0.2 %
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-22S

Honey Refractometer PAL-22S

Close

Salinity Refractometer PAL-03S

PAL-03S is suitable for measurement of salt water(g/100g).This model is also used as the important management tool of the spraying the snow-melting agent on the road. For the model with g/100ml, please choose PAL-106S. We also have Specific Gravity model and Baume model.
Specifications
Model PAL-03S
Cat.No. 4403
Scale Sodium chloride (g/100g)
Range Sodium chloride : 0.0 to 28.0%
Resolution Sodium chloride : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-03S

Salinity Refractometer PAL-03S

Close

Ramen Soup Refractometer PAL-96S

This is the essential item in creasing your Ramen.This model can measure not noly the concentration of Soup and Tare but also baume of kansui used during making the noodle. If you are interested in Meister set of refractometer and salt meter, pleas choose Ramen Meister Set.
For user testimonials of Japanese famous ramen restaurants, click here.
Specifications
Model PAL-96S
Cat.No. 4496
Scale Ramen noodle soup
Baume Kansui
Range Ramen noodle soup : 0.0 to 53.0%
Baume Kansui : 0.0 to 9.9°
Resolution Chinese noodle soup : 0.1%
Baume Kansui : 0.1°
Temperature : 0.1゚C
Accuracy Chinese noodle soup : ±0.2%
Baume Kansui : ±0.3°
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· MAGIC™ (for PAL) : RE-39411

PAL-96S

Ramen Soup Refractometer PAL-96S

Close

Soy Milk Refractometer PAL-27S

You can measure solid contents of soybeans in the soymilk by PAL-27S.It is extremely water resistant for easy clean up. Just run it under the faucet!
Specifications
Model PAL-27S
Cat.No. 4427
Scale Soybean solids
Range Concentration of Soy Milk : 0.0 to 20.0 %
Resolution Concentration of Soy Milk : 0.1 %
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-27S

Soy Milk Refractometer PAL-27S

Close

Condiment Refractometer PAL-98S

Digital Hand-held "Pocket" Condiment Meter PAL-98S is ideal for measuring the concentration of various condiments. Use it to measure soy sauce, ketchup, marinades, curry and many other sauces. Finding the relationship between the actual taste and the measurement value using the PAL-98S will help any chef ensure the best taste every time.
Specifications
Model PAL-98S
Cat.No. 4498
Range Condiment Concentration : 0.0 to 70.0 %
Accuracy ±0.2 %
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-98S

Condiment Refractometer PAL-98S

Close

Cutting Oil Refractometer PAL-102S

This is most suitable for the measurement of the percent dilution and controlling the percent concentration of hydraulic oil and cleaning liquid. Cutting oil, molding lubricant and rust resistance liquid are also well within the measurement range of the PAL-102S. With a water resistant design, the PAL-102S can also float in water which will help to prevent unforeseen accidents. Quick and easy measurements can be taken with the PAL-102S anywhere on your factory floor.
Specifications
Model PAL-102S
Cat.No. 4502
Range Cutting Oil : 0.0 to 70.0%
Resolution Cutting Oil : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· MAGIC TM (for PAL MIM) : RE-39446

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

· 30% Sucrose (±0.03%) : RE-110030

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-102S

Cutting Oil Refractometer PAL-102S

Close

"Pocket" Refractometer PAL-Urea PAL-Urea

The PAL-Urea is specifically designed to measure the Urea concentration of Diesel Exhaust Fluid (DEF), also known as AdBlue* in Europe. Already proven in Europe as the only reliable, go-to instrument for easy and accurate checks, the PAL-Urea is now available in North America in time for new 2010 EPA regulations on diesel emissions.DEF needs to have a 32.5% Urea concentration in order to work effectively in SCR engines. Make sure that the DEF that comes out of your pump and into your tank is pure in quality and safe from potentially harmful additives by using the only digital hand-held refractometer already trusted by European consumers.* AdBlue is a trademark of VDA.
Specifications
Model PAL-Urea
Cat.No. 4518
Scale Urea
Range Urea : 0.0 to 55.0 %
Resolution Urea : 0.1 %
Accuracy ± 0.2 %
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-Urea

"Pocket" Refractometer PAL-Urea PAL-Urea

Close

Hydrogen Peroxide Refractometer PAL-39S

This is ideal to measure Hydrogen peroxide concentration commonly used as a disinfectant.
Specifications
Model PAL-39S
Cat.No. 4439
Scale Hydrogen peroxide (g/100g)
Range Hydrogen peroxide : 0.0 to 50.0%
Resolution 0.2%
Accuracy ±0.6%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-39S

Hydrogen Peroxide Refractometer PAL-39S

Close

Pocket Urine Specific Gravity Refractometer PAL-10S

The PAL-10S is a digital hand-held compact refractometer to measure urine S.G. To operate it, simply place a drop of urine on the prism top and press the "Start"key. Then, the urine S.G. value will be displayed on the LCD instantly.
Specifications
Model PAL-10S
Cat.No. 4410
Scale Urine (S.G.)
Range Urine S.G. : 1.0000 to 1.0600
Resolution Urine S.G. : 0.0001
Accuracy Urine S.G. : ±0.001
Temperature compensation 10 to 35°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· JORDAN for PAL(Silicon Cover) : RE-39414

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

· 10% Sucrose (±0.03%) : RE-110010

* Calibration Certificate : Contact an ATAGO representative for details.

Patent for Design Registration No. ZL200310103015.2 (China)
Patent for Invention Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-10S

Pocket Urine Specific Gravity Refractometer PAL-10S

Close

“Pocket” Urine Specific Gravity Refractometer PAL-ATHLETE

PAL-ATHLETE is designed on the basis of PAL-10S, which is well known in world famous sports games and by sport teams. We changed the name and design from PAL-10S so that athletes feel it more friendly as their indispensable partner to help their health condition. It display specific gravity just in 3 seconds, and it has water proof design to keep hygienic. In addition, it has equipped with NFC function that helps you to keep measurement data automatically.
Specifications
Model PAL-ATHLETE
Cat.No. 4514
Scale Urine (S.G.)
Range Urine S.G. : 1.0000 to 1.0600
Resolution Urine S.G. : 0.0001
Accuracy Urine S.G. : ±0.001
Temperature compensation 10 to 35°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-ATHLETE

“Pocket” Urine Specific Gravity Refractometer PAL-ATHLETE

Close

"Pocket" Ethylene Glycol Refractometer PAL-91S

PAL-91S, easily measure the coolant in brine and other agents of Ethylene Glycol.Antifreezing solution (coolant) whose main ingredient is ethylene glycol is widely used as mixed in cooling water of car's radiator, as cooling medium for central air - conditioning system, freezer / refrigerator, cooling coil, cooling fixture etc. The higher the concentration is, the lower the temperature at which ethylene glycol is frozen is. Therefore, it is needed to adjust freezing temperature of antifreezing solution so that it dose not freeze under a specific operation temperature.For Prolylene Gycol, please choose PAL-88S.
Specifications
Model PAL-91S
Cat.No. 4491
Scale Ethylene glycol Freezing point of E.G(゚C) Temperature
Range E.G:0.0 to 90.0 % (V/V) Freezing point: 0 to -50゚C
Resolution Ethylene glycol : 0.2 % (V/V) Freezing point of Ethylene glycol : 1゚C Temperature : 0.1°C
Accuracy Ethylene glycol: ±0.4 %(V/V)Freezing point: ±1゚C
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world

PAL-91S

"Pocket" Ethylene Glycol Refractometer PAL-91S

Close

Industrial Wash Solutions Refractometer PAL-Cleaner

PAL- cleaner is a model that can be measured with high resolution of decimal two digits of 0.01%.This is ideal for measuring low concentration of the solution, such as industrial cleaning fluid.
Specifications
Model PAL-Cleaner
Cat.No. 4536
Scale Cleaner
Range Cleaner : 0.00 to 25.00%
Resolution Cleaner : 0.01%
Temperature : 0.1゚C
Accuracy ±0.10%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-Cleaner

Industrial Wash Solutions Refractometer PAL-Cleaner

Close

Sodium Hydroxide Refractometer PAL-40S

PAL-40S is suitable to measure the concentration of Sodium hydroxide (g/100g)/water solution.
Specifications
Model PAL-40S
Cat.No. 4440
Scale Sodium hydroxide (g/100g)
Range 0.0 to 38.0%
Resolution Sodium hydroxide : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-40S

Sodium Hydroxide Refractometer PAL-40S

Close

Potassium hydroxide Refractometer PAL-121S

Specifications
Model PAL-121S
Cat.No. 4521
Scale Potassium hydroxide (W/W)
Range 0.0~50.0%
Resolution Potassium hydroxide : 0.1%
Accuracy ±0.3%
Temperature compensation 10~40℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-121S

Potassium hydroxide Refractometer PAL-121S

Close

Soil Moisture Meter PAL-Soil

PAL-Soil has dual scales of Gravimetric soil moisture and Volumetric soil moisture.Save on time, labor, and material with PAL-Soil. A measurement only takes 10 minutes whether out in the fields or in the lab.In accordance with ISO 16586:2003 “Soil quality – Determination of soil water content as a volume fraction on the basis of known dry bulk density – Gravimetric.”
Specifications
Model PAL-Soil
Cat.No. 4571
Range Gravimetric soil moisture : 0 to 200%
Volumetric soil moisture : 0 to 100%
Accuracy Gravimetric soil moisture:
±2% (0 to 40%)
±5% (41 to 100%)
Volumetric soil moisture:
±1% (0 to 60%)
±2%(61 to 100%)
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-Soil

Soil Moisture Meter PAL-Soil

Close
Cat.No. Model Name Model No. Scale Range Accuracy
3850 Pocket Refractometer
Click here for details >>
PAL-RI Refractive Index Refractive Index 1.3306 to 1.5284 Refractive Index ±0.0003
(20℃In Water)
3851 Pocket Refractometer
Click here for details >>
PAL-BX/RI Brix
Refractive Index
Brix  0.0 to 93.0%
Refractive Index:1.3306 to 1.5284
Brix ±0.1%
Refractive Index ±0.0003
(20℃In Water)
Cat.No. Model Name Model No. Scale Range Accuracy
4412 "Pocket" Dextran Refractometer
Click here for details >>
PAL-12S Dextran 0.0 to 15.0 (g/100g) ±0.2
4414 "Pocket" Fructose Refractometer PAL-14S Fructose 0.0 to 50.0 ±0.2
4415 "Pocket" Glucose Refractometer PAL-15S Glucose 0.0 to 50.0 ±0.2
4416 "Pocket" High Fructose Corn Syrup (HFCS-42) Refractometer PAL-16S High Fructose Corn Syrup
(HFCS-42)
0.0 to 85.0 ±0.2
4417 "Pocket" High Fructose Corn Syrup (HFCS-55) Refractometer PAL-17S High Fructose Corn Syrup
(HFCS-55)
0.0 to 85.0 ±0.2
4418 "Pocket" Inverted sugar Refractometer PAL-18S Inverted sugar 0.0 to 50.0 ±0.2
4419 "Pocket" Lactose Refractometer PAL-19S Lactose 0.0 to 20.0 ±0.2
4420 "Pocket" Maltose Refractometer PAL-20S Maltose 0.0 to 25.0 ±0.2
Cat.No. Model Name Model No. Scale Range Accuracy
4508 "Pocket" Pâtissier Meter
Click here for details >>
PAL-Pâtissier Brix
Sugar Baume
Brix  0.0 to 85.0%
Sugar Baume  0 to 45°
Brix  ±0.2%
Sugar Baume  ±1°
Cat.No. Model Name Model No. Scale Range Accuracy
4422 "Pocket" Honey Refractometer
Click here for details >>
PAL-22S Honey moisture 12.0 to 30.0% ±0.2%
3820 "Pocket" Refractometer
Click here for details >>
PAL-2 Brix Brix 45.0 to 93.0% ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4523 Pocket Refractometer
Click here for details >>
PAL-COFFEE Brix Brix  0.00 to 25.00% Brix  ±0.2%
4532 Pocket Refractometer (TDS)
Click here for details >>
PAL-COFFEE
(TDS)
TDS TDS  0.00 to 22.00% TDS  ±0.15%
4533 Pocket Refractometer (BX&TDS)
Click here for details >>
PAL-COFFEE
(BX/TDS)
Brix & TDS Brix  0.00 to 25.00%
TDS  0.00 to 22.00%
Brix  ±0.2%
TDS  ±0.15%
Cat.No. Model Name Model No. Scale Range Accuracy
4535 Pocket Tea Concentration Meter
Click here for details >>
PAL-Tea Tea Brix  0.0 to 25.0% Brix  ±0.10%
Cat.No. Model Name Model No. Scale Range Accuracy
3807 "Pocket" Milk Refractometer
Click here for details >>
PAL-MILK Non-Fat Milk
Solids
  0.0 to 23.0% ±0.2%
4515 "Pocket" Butyro Refractometer
Click here for details >>
PAL-BUTYRO Butyro   30.0 to 90.0 ±1.0
Cat.No. Model Name Model No. Scale Range Accuracy
4427 Pocket Soy Milk Refractometer
Click here for details >>
PAL-27S Soybean
solids
0.0 to 20.0% ±0.2%
4443 "Pocket" Magnesium chloride / Snow-melting agent Refractometer
Click here for details >>
PAL-43S Magnesium chloride 0.0 to 30.0% (g/100g) ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4496 "Pocket" Chinese noodle soup Refractometer
Click here for details >>
PAL-96S Ramen noodle soup
Baume Kansui
Ramen noodle soup
0.0 to 53.0%
Baume Kansui
0.0 to 9.9°
Ramen noodle soup
±0.2%
Baume Kansui
±0.2°
4003 Ramen Meister Set
Click here for details >>
PAL-Ramen
PAL-Easy SALT
Ramen noodle soup
Salt concentration
Ramen noodle soup
0.0 to 53.0%
Salt concentration
0.0 to 10.0° (g/100g)
Ramen noodle soup
±0.2%
Salt concentration
Display value ±0.05%(0.00-0.99%)
Relative precision ±5%(1.00-10.0%)
Cat.No. Model Name Model No. Scale Range Accuracy
4001 Dashi Meister Set
Click here for details >>
PAL-Easy Salt
PAL-Dashi
soup stock
Salt concentration
soup stock
0.0 to 53.0%
Salt concentration
0.0 to 10.0° (g/100g)
Salt concentration
±0.2%
Salt concentration
Display value ±0.05%(0.00-0.99%)
Relative precision ±5%(1.00-10.0%)
Cat.No. Model Name Model No. Scale Range Accuracy
4498 "Pocket" Condiment Meter
Click here for details >>
PAL-98S Condiment
Concentration
0.0 to 70.0% ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4250 "Pocket" SALT METER
Click here for details >>
PAL-SALT Salt concentration
(Conductivity method)
0.0 to 10.0% (g/100g) Display value  ±0.05%(0.00 to 0.99%)
Relative precision  ±5%(1.00 to 10.0%)
4251 "Pocket" SALT METER PAL-SALT Mohr
Click here for details >>
PAL-SALT Mohr Salt concentration
(Conductivity method)
0.0 to 10.0%(g/100g) Display value  ±0.05%(0.00 to 0.99%)
Relative precision  ±5%(1.00 to 10.0%)
4222 "Pocket" Salt-meter PAL-SALT PROBE
Click here for details >>
PAL-SALT PROBE Salt concentration
(Conductivity method)
Absolute precision
0.0 to 7.0% (g/100g)
0.00 to 2.0% ±0.1%
Relative precision 2.1 to 5.0%
±5%
Relative precision 5.1 to 7.0%
±10%
4101 "Pocket" Salt-meter
Click here for details >>
PAL-Easy SALT concentration 0.0 to 10.0° (g/100g) Display value ±0.05%(0.00-0.99%)
Relative precision ±5%(1.00-10.0%)
4403 "Pocket" Salinity / Snow-melting agent Refractometer
Click here for details >>
PAL-03S Sodium chloride 0.0 to 28.0% (g/100g) ±0.2% (g/100g)
4506 "Pocket" Sodium Chloride Meter
Click here for details >>
PAL-106S Sodium chloride 0.0 to 33.0% (g/100mL) ±0.2%
4404 "Pocket" Sodium chloride (S.G.) Refractometer
Click here for details >>
PAL-04S Sodium chloride (S.G.) 1.000 to 1.217 ±0.002
4405 "Pocket" Sodium chloride (Baume) Refractometer
Click here for details >>
PAL-05S Sodium chloride (Baume)° 0.0 to 25.7° ±0.2°
4221 Dried Fish Salt meter
Click here for details >>
PAL-FM1 Salt 0.0to10.0%
Cat.No. Model Name Model No. Scale Range Accuracy
4406 "Pocket" Salinity Refractometer
Click here for details >>
PAL-06S Salinity Salinity  0 to 100‰ ±2%
4407 "Pocket" Sea water (S.G.) Refractometer
Click here for details >>
PAL-07S Sea water (S.G.) 1.000 to 1.070 ±0.002
4408 "Pocket" Sea water (Baume) Refractometer
Click here for details >>
PAL-08S Sea water (Baume)° 0.0 to 10.0° ±0.2°
4121 "Pocket" Seawater meter
Click here for details >>
PAL-Fish Tank Seawater 0.0 to 45.0‰ ±2.0‰
Cat.No. Model Name Model No. Scale Range Accuracy
4022 Koi Meister Set
Click here for details >>
PAL-Easy SALT
PAL-pH
Brine
pH
Brine   0.00 to 10.0%
pH 0.00 to 14.00
Brine
Display value ±0.05%(0.00 to 0.99%)
Relative precision ±5%(1.00 to 10.0%)
pH±0.10(pH4.01 to 9.18)
Cat.No. Model Name Model No. Scale Range Accuracy
4429 "Pocket" Citric acid Refractometer
Click here for details >>
PAL-29S Citric acid 0.0 to 10.0 ±0.2
4430 "Pocket" Acetic acid Refractometer
Click here for details >>
PAL-30S Acetic acid 0.0 to 20.0 ±0.4
4432 "Pocket" Phosphoric acid Refractometer
Click here for details >>
PAL-32S Phosphoric acid 0.0 to 20.0 ±0.4
4464 "Pocket" Sodium bicarbonate Refractometer
Click here for details >>
PAL-64S Sodium bicarbonate 0.0 to 10.0 ±0.3
4465 "Pocket" Sodium tartrate Refractometer
Click here for details >>
PAL-65S Sodium tartrate 0.0 to 25.0 ±0.2
4470 "Pocket" Potassium phosphate Refractometer
Click here for details >>
PAL-70S Potassium phosphate 0.0 to 15.0 ±0.3
Cat.No. Model Name Model No. Scale Range Accuracy
4502 "Pocket" Cutting Oil Meter
Click here for details >>
PAL-102S Cutting Oil 0.0 to 70.0 ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4537 "Pocket" Meter for Corrosion Inhibitor Solutions
Click here for details >>
PAL-AntiRust AntiRust 0.00 to 25.00% ±0.10%
Cat.No. Model Name Model No. Scale Range Accuracy
4538 "Pocket" Release Agent Refractometer
Click here for details >>
PAL-Release Agent Release Agent 0.00 to 25.00% ±0.10%
Cat.No. Model Name Model No. Scale Range Accuracy
4536 "Pocket" Meter for Industrial Wash Solutions
Click here for details >>
PAL-Cleaner Cleaner 0.00 to 25.00% ±0.10%
4558 "Pocket" Hydrocarbon Cleaner Contamination Refactometer
Click here for details >>
PAL-Hydrocarbon Cleane Contam. 0.0 to 30.0% ±1.00%
Cat.No. Model Name Model No. Scale Range Accuracy
4540 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Whiskey
Click here for details >>
PAL-Whiskey Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4541 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Vodka
Click here for details >>
PAL-Vodka Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4542 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Tequila
Click here for details >>
PAL-Tequila Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4543 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Shochu
Click here for details >>
PAL-Shochu Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4544 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Gin
Click here for details >>
PAL-Gin Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4545 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Rum
Click here for details >>
PAL-Rum Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4546 "Pocket" Ethyl alcohol refractometer(V/V) PAL-Brandy
Click here for details >>
PAL-Brandy Ethyl alcohol 0.0 to 53.0% (mL/100mL) ±1.0%
4580 "Pocket" Refractometer
Click here for details >>
PAL-Plato Plato 0.0 to 30.0° P ±0.2° P
Cat.No. Model Name Model No. Scale Range Accuracy
4433 "Pocket" Ethyl alcohol Meter(mL/100mL)
Click here for details >>
PAL-33S Ethyl alcohol(mL/100mL) 0.0 to 53.0% ±1.0%
4434 "Pocket" Ethyl alcohol Meter(g/100g)
Click here for details >>
PAL-34S Ethyl alcohol(g/100g) 0.0 to 45.0 ±1.0
4436 "Pocket" Methyl alcohol Refractometer
Click here for details >>
PAL-36S Methyl alcohol(g/100g) 0 to 35 ±2
4437 "Pocket" Isopropyl alcohol Refractometer PAL-37S Isopropyl alcohol(g/100g) 0.0 to 60.0 0 to 30% ±0.6
40% to 60% ±1.6
4530 "Pocket" Isopropyl alcohol Refractometer(mL/100mL)
Click here for details >>
PAL-131S Isopropyl alcohol(mL/100mL) 0.0 to 20.0 ±0.6
4485 "Pocket" Polyvinyl alcohol Refractometer
Click here for details >>
PAL-85S Polyvinyl alcohol 0.0 to 20.0 ±0.2
Cat.No. Model Name Model No. Scale Range Accuracy
4412 "Pocket" Dextran Refractometer
Click here for details >>
PAL-12S Dextran(g/100g) 0.0 to 15.0 ±0.2
4413 "Pocket" Creatine Refractometer PAL-13S Creatine(g/100g) 0.0 to 10.0 ±0.2
4423 "Pocket" Glycerin Low concentration Refractometer
Click here for details >>
PAL-23S Glycerin 0.0 to 65.0 ±0.4
4424 "Pocket" Glycerin High concentration Refractometer
Click here for details >>
PAL-24S Glycerin 60.0 to 99.0 ±0.4
4425 "Pocket" Inulin Refractometer PAL-25S Inulin 0.0 to 15.0 ±0.2
4426 "Pocket" Mannitol Refractometer PAL-26S Mannitol 0.0 to 15.0 ±0.3
4431 "Pocket" Formic acid Refractometer PAL-31S Formic acid 0.0 to 90.0 ±1.0
4432 "Pocket" Phosphoric acid Refractometer
Click here for details >>
PAL-32S Phosphoric acid 0.0 to 20.0 ±0.4
4451 "Pocket" Sodium bromide Refractometer PAL-51S Sodium bromide 0.0 to 30.0 ±0.2
4455 "Pocket" Magnesium sulfate Refractometer PAL-55S Magnesium sulfate 0.0 to 25.0 ±0.2
4464 "Pocket" Sodium bicarbonate Refractometer
Click here for details >>
PAL-64S Sodium bicarbonate 0.0 to 10.0 ±0.3
4465 "Pocket" Sodium tartrate Refractometer
Click here for details >>
PAL-65S Sodium tartrate 0.0 to 25.0 ±0.2
4466 "Pocket" Potassium oxalate Refractometer PAL-66S Potassium oxalate 0.0 to 10.0 ±0.2
4468 "Pocket" Potassium dichromate Refractometer PAL-68S Potassium dichromate 0.0 to 15.0 ±0.2
4470 "Pocket" Potassium phosphate Refractometer
Click here for details >>
PAL-70S Potassium phosphate 0.0 to 15.0 ±0.3
4472 "Pocket" Sodium tungstate Refractometer PAL-72S Sodium tungstate 0.0 to 10.0 ±0.4
Cat.No. Model Name Model No. Scale Range Accuracy
4442 "Pocket" Cesium chloride Refractometer
PAL-42S Cesium chloride 0.0 to 60.0 ±0.4
4453 "Pocket" Copper sulfate (Concentration) Refractometer
Click here for details >>
PAL-53S Copper sulfate (Concentration) 0.0 to 20.0 ±0.2
4454 "Pocket" Copper sulfate (S.G.) Refractometer
Click here for details >>
PAL-54S Copper sulfate (S.G.) 1.000 to 1.210 ±0.002
4411 "Pocket" Cat Urine S. G. refractometer
Click here for details >>
PAL-11S Urine Specific Gravity (Cat) 0.0 to 12.0 (g/100mL) ±0.2
4529 "Pocket" Dog&Cat Urine Specific gravity Refractometer
Click here for details >>
PAL-DOG&CAT Urine Specific Gravity (Dog)
Urine Specific Gravity (Cat)
(Dog)  1.0000 to 1.0600
(Cat)  1.0000 to 1.0800
±0.001
4510 "Pocket" Dogt Urine S. G. refractometer
Click here for details >>
PAL-DOG Urine Specific Gravity (Dog) 1.0000 to 1.0600 ±0.001
4511 "Pocket" Cat Urine S. G. refractometer
Click here for details >>
PAL-CAT Urine Specific Gravity (Cat) 1.0000 to 1.0800 ±0.001
4512 "Pocket" Rabbit Urine Specific Gravity Refractometer
Click here for details >>
PAL-RABBIT Urine Specific Gravity (Rabbit) 1.0000 to 1.1000 ±0.002
Cat.No. Model Name Model No. Scale Range Accuracy
4518 "Pocket" Refractometer
Click here for details >>
PAL-Urea Urea 0.0 to 55.0% ±0.3%
Cat.No. Model Name Model No. Scale Range Accuracy
4439 "Pocket" Hydrogen peroxide Refractometer
Click here for details >>
PAL-39S Hydrogen peroxide 0.0 to 50.0 ±0.6
Cat.No. Model Name Model No. Scale Range Accuracy
4440 "Pocket" Sodium hydroxide Refractometer
Click here for details >>
PAL-40S Sodium hydroxide 0.0 to 38.0 ±0.2
Cat.No. Model Name Model No. Scale Range Accuracy
4393 "Pocket" Refractometer
Click here for details >>
PAL-03CS Sodium chloride
+
Freezing point
0.0 to 28.0% (g/100g)
Freezing point  0 to -22℃
±0.2% (g/100g)
Freezing point  ±1℃
4403 "Pocket" Salinity / Snow-melting agent Refractometer
Click here for details >>
PAL-03S Sodium chloride 0.0 to 28.0% (g/100g) ±0.2%(g/100g)
4441 "Pocket" Snow-melting agent Refractometer
Click here for details >>
PAL-41S Calcium chloride 0.0 to 35.0% (g/100g) ±0.2%
4443 "Pocket" Magnesium chloride / Snow-melting agent Refractometer
Click here for details >>
PAL-43S Magnesium chloride 0.0 to 30.0% (g/100g) ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4488 "Pocket" Propylene Glycol Refractometer
Click here for details >>
PAL-88S Concentration of Propylene Glycol (V/V)
&
Freezing point
0.0 to 90.0%(V/V)
Freezing point  0 to -50℃
±0.4% (V/V)
Freezing point  ±1℃
4491 "Pocket" Ethylene Glycol refractometer
Click here for details >>
PAL-91S Ethylene Glycol
&
Freezing point
0.0 to 90.0% (V/V)
Freezing point  0 to -50℃
±0.4% (V/V)
Freezing point  ±1℃
Cat.No. Model Name Model No. Scale Range Accuracy
4438 "Pocket" Dimethyl formamide Refractometer
Click here for details >>
PAL-38S Dimethyl formamide 0.0 to 45.0 ±0.4
Cat.No. Model Name Model No. Scale Range Accuracy
4421 "Pocket" Dextrin Refractometer PAL-21S Dextrin 0.0 to 30.0 ±0.3
Cat.No. Model Name Model No. Scale Range Accuracy
4423 "Pocket" Glycerin (Low concentration) Refractometer
Click here for details >>
PAL-23S Glycerin 0.0 to 65.0 ±0.4
4424 "Pocket" Glycerin (High concentration) Refractometer
Click here for details >>
PAL-24S Glycerin
PAL-2 correspondence
60.0 to 99.0 ±0.4
4430 "Pocket" Acetic acid Refractometer
Click here for details >>
PAL-30S Acetic acid 0.0 to 20.0 ±0.4
4431 "Pocket" Formic acid Refractometer
PAL-31S Formic acid 0.0 to 90.0 ±1.0
4432 "Pocket" Phosphoric acid Refractometer
Click here for details >>
PAL-32S Phosphoric acid 0.0 to 20.0 ±0.4
4444 "Pocket" Lithium chloride Refractometer PAL-44S Lithium chloride 0.0 to 20.0 ±0.2
4445 "Pocket" Barium chloride Refractometer PAL-45S Barium chloride 0.0 to 25.0 ±0.2
4446 "Pocket" Cobalt chloride Refractometer PAL-46S Cobalt chloride 0.0 to 15.0 ±0.2
4447 "Pocket" Ferric chloride Refractometer PAL-47S Ferric chloride 0.0 to 15.0 ±0.2
4448 "Pocket" Strontium chloride Refractometer PAL-48S Strontium chloride 0.0 to 25.0 ±0.2
4449 "Pocket" Potassium chloride Refractometer PAL-49S Potassium chloride 0.0 to 30.0 ±0.2
4450 "Pocket" Potassium bromide Refractometer PAL-50S Potassium bromide 0.0 to 35.0 ±0.2
4451 "Pocket" Sodium bromide Refractometer PAL-51S Sodium bromide 0.0 to 30.0 ±0.2
4452 "Pocket" Potassium iodide Refractometer PAL-52S Potassium iodide 0.0 to 30.0 ±0.2
4453 "Pocket" Copper sulfate (Concentration) Refractometer
Click here for details >>
PAL-53S Copper sulfate
(Concentration)
0.0 to 20.0 ±0.2
4454 "Pocket" Copper sulfate (S.G.) Refractometer
Click here for details >>
PAL-54S Copper sulfate (S.G.) 1.000 to 1.210 ±0.002
4455 "Pocket" Magnesium sulfate Refractometer
Click here for details >>
PAL-55S Magnesium sulfate 0.0 to 25.0 ±0.2
4456 "Pocket" Potassium sulfate Refractometer PAL-56S Potassium sulfate 0.0 to 15.0 ±0.3
4457 "Pocket" Nickel sulfate Refractometer PAL-57S Nickel sulfate 0.0 to 10.0 ±0.2
4458 "Pocket" Sodium sulfate Refractomete PAL-58S Sodium sulfate 0.0 to 30.0 ±0.2
4459 "Pocket" Zinc sulfate Refractometer PAL-59S Zinc sulfate 0.0 to 20.0 ±0.2
4460 "Pocket" Silver nitrate Refractometer PAL-60S Silver nitrate 0.0 to 35.0 ±0.3
4461 "Pocket" Sodium nitrate Refractometer PAL-61S Sodium nitrate 0.0 to 35.0 ±0.3
4462 "Pocket" Potassium carbonate Refractometer PAL-62S Potassium carbonate 0.0 to 25.0 ±0.2
4463 "Pocket" Sodium carbonate Refractometer PAL-63S Sodium carbonate 0.0 to 15.0 ±0.2
4464 "Pocket" Sodium bicarbonate Refractometer
Click here for details >>
PAL-64S Sodium bicarbonate 0.0 to 10.0 ±0.3
4467 "Pocket" Potassium chromate Refractometer PAL-67S Potassium chromate 0.0 to 20.0 ±0.2
4468 "Pocket" Potassium dichromate Refractometer PAL-68S Potassium dichromate 0.0 to 15.0 ±0.2
4469 "Pocket" Sodium thiosulfate Refractometer PAL-69S Sodium thiosulfate 0.0 to 20.0 ±0.2
4470 "Pocket" Potassium phosphate Refractometer
Click here for details >>
PAL-70S Potassium phosphate 0.0 to 15.0 ±0.3
4471 "Pocket" Sodium molybdate Refractometer PAL-71S Sodium molybdate 0.0 to 10.0 ±0.2
4472 "Pocket" Sodium tungstate Refractometer PAL-72S Sodium tungstate 0.0 to 10.0 ±0.4
Cat.No. Model Name Model No. Scale Range Accuracy
4572 "Pocket" Moisture Refractometer
Click here for details >>
PAL-Moisture Moisture content (g/100g) 7.0 to 100% ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4574 'Pocket' Dried Fruit Moisture Meter
Click here for details >>
PAL-Dried Fruit Moisture Moisture 7.0 to 100% ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
3805 "Pocket" Refractometer
Click here for details >>
PAL-Colostrum Brix 0.0 to 53.0%   ±0.2%
Cat.No. Model Name Model No. Scale Range Accuracy
4537 "Pocket" Isopropyl alcohol Refractometer
Click here for details >>
PAL-37S Isopropyl alcohol (g/100g) Isopropyl alcohol  0.0 to 60.0% Isopropyl alcohol ±0.6% upto 30% and 1.6% upto 60%
4530 "Pocket" Isopropyl alcohol Refractometer
Click here for details >>
PAL-131S Isopropyl alcohol (g/100g) Isopropyl alcohol  0.0 to 20.0% Isopropyl alcohol ±0.6%
Cat.No. Model Name Model No. Scale Range Accuracy
4571 Gravimetric/Volumetric Soil Moisture
Click here for details >>
PAL-Soil Water content ratio
Deposited moisture content
Water content ratio  0 to 200%
Deposited moisture content  0 to 100%
Water content ratio
±2%(At a water content ratio of 41 to 100%)
±5%(At a water content ratio of 0 to 40%)

Digital Pocket Refractometer PAL-COFFEE

PAL-COFFEE(Brix scale), which famous Baristas are using for their important tools, has the high resolution of 0.01%.The subtle difference in the concentration of coffee and espresso can be measured.Stable readings are possible even with high-temperature, fresh brew due to the continuous measurement feature.
For TDS scale, please choose PAL-Coffee(TDS).
For Double scales of Brix and TDS, pleas choose PAL-Coffee(BX/TDS).
Specifications
Model PAL-COFFEE
Cat.No. 4523
Scale Brix
Range Brix : 0.00 to 25.00%
Accuracy Brix : ±0.10%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-COFFEE

Digital Pocket Refractometer PAL-COFFEE

Close

Digital Pocket Refractometer PAL-COFFEE (TDS)

PAL-COFFEE(TDS scale), which famous Baristas are using for their important tools, has the high resolution of 0.01%.The subtle difference in the concentration of coffee and espresso can be measured.Stable readings are possible even with high-temperature, fresh brew due to the continuous measurement feature.
For Brix scale, please choose PAL-Coffee(Brix).
For Double scales of Brix and TDS, pleas choose PAL-Coffee(BX/TDS).
Specifications
Model PAL-COFFEE (TDS)
Cat.No. 4532
Scale Todal Dissolved Solids(TDS)
Range TDS : 0.00 to 22.00%
Resolution TDS : 0.01%
Accuracy ±0.15%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-COFFEE (TDS)

Digital Pocket Refractometer PAL-COFFEE (TDS)

Close

Digital Pocket Refractometer PAL-COFFEE (BX/TDS)

PAL-COFFEE(Dual sale of Brix and TDS), which famous Baristas are using for their important tools, has the high resolution of 0.01%.The subtle difference in the concentration of coffee and espresso can be measured.Stable readings are possible even with high-temperature, fresh brew due to the continuous measurement feature.
For Brix scale, please choose PAL-Coffee(Brix).
For TDS scale, pleas choose PAL-Coffee(TDS).
Specifications
Model PAL-COFFEE (BX/TDS)
Cat.No. 4533
Scale Brix
Todal Dissolved Solids(TDS)
Range Brix : 0.00 to 25.00%
TDS : 0.00 to 22.00%
Resolution Brix : 0.01%
TDS : 0.01%
Accuracy Brix : ±0.10%
TDS : ±0.15%
Temperature compensation 10 to 100℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-COFFEE (BX/TDS)

Digital Pocket Refractometer PAL-COFFEE (BX/TDS)

Close

''Pocket'' Dextran Refractometer PAL-12S

This model is suitable to measure the concentration of Dextran/water solution.
Specifications
Model PAL-12S
Cat.No. 4412
Scale Dextran (g/100g)
Range 0.0 to 15.0% (g/100g)
Accuracy ±0.2%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-12S

''Pocket'' Dextran Refractometer PAL-12S

Close

Pocket Tea Concentration Meter PAL-Tea

The PAL-Tea is capable of measurements at a high resolution (RES). The 0.01% RES (up to the second decimal) allows for precise management of even the slightest variations in tea concentration.The unit is capable of automatically detecting temperature stability, which allows for stable, consistent measurements even at high temperatures—such as measuring hot, freshly brewed tea.
Specifications
Model PAL-Tea
Cat.No. 4535
Scale Brix
Range Brix : 0.00 to 25.00%
Resolution Brix : 0.01%
Temperature : 0.1℃
Accuracy ±0.10%
Temperature compensation 10 to 100℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38048

· USB Battery Charger : RE-34801

PAL-Tea

Pocket Tea Concentration Meter PAL-Tea

Close

"Pocket" Milk Refractometer PAL-MILK

The unit displays the non-fat solids contained in milk.
The unit is equipped with a scale that corresponds to measurement values obtained from ultrasonic milk analyzers,
allowing the non-fat solid contained in milk to quickly be determined.
Specifications
Model PAL-MILK
Cat.No. 3807
Scale Non-Fat Milk Solids
Range Non-Fat Milk Solids: 0.0 to 23.0%
Resolution Non-Fat Milk Solids : 0.1%
Temperature : 0.1゚C
Accuracy ±0.2%
Temperature compensation 10 to 100℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-MILK

"Pocket" Milk Refractometer PAL-MILK

Close

Pocket Butyro Refractometer PAL-BUTYRO

PAL-BUTYRO perfect for Butter, Ghee & Edible Oil industry for checking purity / adulteration.
Specifications
Model PAL-BUTYRO
Cat.No. 4515
Range Butyro : 30.0 to 90.0
RI : 1.4450 to 1.4850
Resolution Butyro: 0.1
RI : 0.0001
Accuracy Butyro : ±1.0
RI : ±0.0005
Temperature compensation 10 to 50°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-BUTYRO

Pocket Butyro Refractometer PAL-BUTYRO

Close

Magnesium chloride Refractometer PAL-43S

You can measure Magnesium chloride based Snow-melting agent by PAL-43S easily on the road. Also, PAL-43S can be used to measure magnesium chloride solution used as coagulant when making Tofu.
Specifications
Model PAL-43S
Cat.No. 4443
Scale Magnesium chloride
Range Magnesium chloride : 0.0 to 30.0%
Accuracy ±0.2%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-43S

Magnesium chloride Refractometer PAL-43S

Close

PAL-Ramen Meister-Set

This is the essential item in creating your Ramen.The Ramen Meister Set is well known as the important item for Ramen.This set includes refractometer and salt meter for measuring Soup/Tare.Please choose this item for keeping your taste.For user testimonials of Japanese famous ramen restaurants, click here.
Specifications
Model Meister-Set
Cat.No. 4003
Range Salt meter :0.00~10.0%
Refractometer:0.0~53.0%
Resolution Salt meter:0.01%(0.00~2.99%),0.1%(3.0~10.0%)
Refractometer:0.1%
Accuracy Salt meter:±0.05%(0.00~0.99%), Relative accuracy±5% for 1.00% ~10.0%
Refractometer: ±0.2%
Power Supply AAA alkaline battery x 2
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
Meister-Set

PAL-Ramen Meister-Set

Close

PAL Dashi Meister set

It is a set of Atago's salinity meter PAL-Easy Salt and a soup refractometer PAL-Dashi. Recommended for those who want to manage salty and concentration firmly. There are only two buttons. Easily check the difference in slight concentration of soup stock.
Specifications
Model Meister set
Cat.No. 4001
Range Salt meter :0.00 to 10.0%
Refractometer :0.00 to 25.00%
Resolution Salt meter :0.01%(0.00 to 2.99%),0.1%(3.0 to 10.0%)
Refractometer:0.01%
Accuracy Salt meter :±0.05%(0.00 to 0.99%) Relative precision±5%(1.00 to 10.0%)
Refractometer:±0.10%
Power Supply 2 x AAA Battery
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38048

· USB Battery Charger : RE-34801

Meister set

PAL Dashi Meister set

Close

Digital Hand-held PAL-SALT

PAL-SALT is widely used in various industries for food and industrial solutions. For food products, in addition to checking salt content, salt meter is used to make sure salt is properly added and not forgotten for such product as bread, rice balls and frozen. For industrial use, salt meter is widely used for salt resistance test for cars and such.
*Offset feature use examples
#1. Program a dilution factor to display the original salt%
#2. Program a conversion factor to align the readings with titration methods.
Specifications
Model PAL-SALT
Cat.No. 4250
Scale Salt concentration (g/100g)
Temperature
Method Conductivity method
Range 0.00 to 10.0% (g/100g)
Resolution 0.01% for salt concentration of 0.00 to 2.99%
0.1% for salt concentration of 3.0 to 10.0%
Accuracy Displayed value ±0.05%
(for salt concentration of 0.00 to 0.99%)
Relative precision ±5%
(for salt concentration of 1.00 to 10.0%)
Sample temp. 5 to 100°C
PAL-SALT

Digital Hand-held PAL-SALT

Close

Digital Hand-held "Pocket" SALT METER PAL-SALT Mohr

PAL-SALT Mohr gives a reading similar to those obtained from the Mohr’s method (titration). Like other ATAGO salt meters, PAL-SALT Mohr utilizes conductivity to measure samples. This unit also features an offset function which allows for readings to be compensated based on known standards.
Specifications
Model PAL-SALT Mohr
Cat.No. 4251
Scale Salt concentration (g/100mL)
Temperature
Method Conductivity method
Range 0.00 to 10.0% (g/100mL)
Resolution 0.01% for salt concentration of 0.00 to 2.99%
0.1% for salt concentration of 3.0 to 10.0%
Accuracy Displayed value ±0.05%
(for salt concentration of 0.00 to 0.99%)
Relative precision ±5%
(for salt concentration of 1.00 to 10.0%)
Sample temp. 5~100℃
PAL-SALT Mohr

Digital Hand-held "Pocket" SALT METER PAL-SALT Mohr

Close

Digital Hand-held “Pocket” Salt-meter PAL-SALT PROBE

The PAL-SALT PROBE features convenient operation of submerging the probe in a liquid for measuring the salt content in as fast as 3 seconds. The probe may be inserted directly into semi-solid food. However,measurements at different locations may be inconsistent,and such direct measurements may vary from measurements by dilution methods.・Electrode pins have extended from 5mm to 10mm for easier measurement.・Screen now features a backlight for an easier to read
Specifications
Model PAL-SALT PROBE
Cat.No. 4222
Scale Salt concentration (g/100g)
Method Conductivity method
Range 0.00 to 7.0%
Resolution 0.01% (0.00 to 1.99%)
0.1% (2.0 to 7.0%)
Accuracy ± 0.1% (0.00 to 1.99%)
Relative precision : ± 5% (2.1 to 5.0%)
Relative precision : ± 10% (5.1 to 7.0%)
Temperature compensation 5 to 40 ゚C
Power Supply 2 × AAA Batteries
International Protection Class IP65 Water resistant
Dimensions & Weight Main Unit : 55(W)×31(D)×109(H)mm, 100g
Electrode probe : Φ15×570mm (Cable length : applox.400mm)
PAL-SALT PROBE

Digital Hand-held “Pocket” Salt-meter PAL-SALT PROBE

Close

Salinity Refractometer PAL-106S

PAL-106S is suitable for measurement and management of the salt concentration in salt water solution up to 33% (g/100mL).
Specifications
Model PAL-106S
Cat.No. 4506
Scale Sodium Chloride (g/100mL)
Range 0.0 to 33.0%(g/100mL)
Accuracy Sodium Chloride : ±0.2%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-106S

Salinity Refractometer PAL-106S

Close

Salinity Refractometer PAL-04S

PAL-04S is suitable to measure the specific gravity of salt water solution.We recommend this model to the customer who are using glass-made hydrometer as the scale is same as hydrometer.
Specifications
Model PAL-04S
Cat.No. 4404
Scale Sodium chloride (S.G.)
Range 1.000 to 1.217
Accuracy ±0.002
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-04S

Salinity Refractometer PAL-04S

Close

Salinity Refractometer PAL-05S

PAL-05S is suitable to measure Baume of salt water concentration.We recommend to the customer who are using Hydrometer as the scale is same as Hydrometer.
Specifications
Model PAL-05S
Cat.No. 4405
Scale Sodium chloride (Baume)
Range 0.0 to 25.7°
Accuracy ±0.2°
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-05S

Salinity Refractometer PAL-05S

Close

"Pocket" Salt-meter PAL-Easy SALT

Professional salinity meter that can easily control salinity with high accuracy. It is the only titanium electrode in the world and durability is outstanding.
Specifications
Model PAL-Easy SALT
Cat.No. 4101
Range Sodium Chloride:0.0 to 10.0%
Minimum Indication 0.01% (up to 2.99% salt)
0.1% (above 3.00% salt)
Accuracy ±0.05% (up to 0.99%)
Relative precision of ±5% (above 1.00%)
Temperature compensation 5 to 100°C

· Battery Case Cover With O-Ring : RE-38047

· USB Battery Charger : RE-34801

PAL-Easy SALT

"Pocket" Salt-meter PAL-Easy SALT

Close

Seawater Refractometer PAL-06S

This model is for measuring the salinity in seawater.
Specifications
Model PAL-06S
Cat.No. 4406
Scale Salinity of Seawater
Range 0 to 100‰
Resolution Salinity : 1‰
Temperature : 0.1゚C
Accuracy ±2‰
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-06S

Seawater Refractometer PAL-06S

Close

Sea water Refractometer PAL-07S

This model is suitable to measure the specific gravity of sea water. It is hygienic design as it can be washed by running water.
Specifications
Model PAL-07S
Cat.No. 4407
Scale Sea water (S.G.)
Range Sea water (S.G.) : 1.000 to 1.070
Accuracy ±0.002
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-07S

Sea water Refractometer PAL-07S

Close

Sea water Refractometer PAL-08S

This model is for measuring salinity in seawater by baume scale.
Specifications
Model PAL-08S
Cat.No. 4408
Range Sea water (Baume) : 0.0 to 10.0°
Resolution 0.1°
Accuracy ±0.2°
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-08S

Sea water Refractometer PAL-08S

Close

Seawater meter PAL-Fish Tank

This model is for measuring the salinity in seawater.The only one model in the world adopt the titanium as an electrode.It is resistant to scratches and has much durability.
Specifications
Model PAL-Fish Tank
Cat.No. 4121
Range Salinity:0.0 to 45.0‰
Minimum Scale 0.1‰
Accuracy ±2.0‰
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38047

· USB Battery Charger : RE-34801

PAL-Fish Tank

Seawater meter PAL-Fish Tank

Close

Koi Meister Set PAL-Easy SALT & PAL-pH

For growing beautiful Koi !

This is a professional kit for breeding Koi.
This kit consists of salt meter "PAL-Easy SALT" which is the most suitable for managing the salt water bath and the pH meter "PAL-pH" which is most suitable for managing the water quality of breeding water.
The salt bath in the concentration of 0.3 to 0.7% often recommended for the treatment and disease prevention. You can manage the salt water contents in a minimum resolution 0.01%.
Please see the customer's testimonials from here.
Specifications
Model PAL-Easy SALT & PAL-pH
Cat.No. 4022
Range Salinity: 0.00 to 10.0%
pH: 0.00 to 14.00
Minimum Indication Salinity:
0.01%(0.00 to 2.99%)
0.1%(3.0 to 10.0%)
pH :0.01
Accuracy Salinity:
Displayed value ±0.05%(0.00 to 0.99%)
Relative accuracy ±5%(1.00 to 10.0%)
pH:±0.10(pH4.01 to 9.18)
PAL-Easy SALT & PAL-pH

Koi Meister Set PAL-Easy SALT & PAL-pH

Close

Digital Hand-held "Pocket" Citric acid Refractometer PAL-29S

PAL-29S is suitable to measure Citric acid/water solution.
Specifications
Model PAL-29S
Cat.No. 4429
Scale Citric acid (g/100g)
Range Citric acid : 0.0 to 10.0%
Accuracy ±0.2%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-29S

Digital Hand-held "Pocket" Citric acid Refractometer PAL-29S

Close

Acetic Acid Refractometer PAL-30S

PAL-30S is suitable to measure the concentration of acetic acid /water solution.
Specifications
Model PAL-30S
Cat.No. 4430
Scale Acetic acid (g/100g)
Range 0.0 to 20.0%
Accuracy ±0.4%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-30S

Acetic Acid Refractometer PAL-30S

Close

Phosphoric Acid Refractometer PAL-32S

PAL-32S is suitable to measure the concentration of Phosphoric acid /water solution.
Specifications
Model PAL-32S
Cat.No. 4432
Scale Phosphoric acid (g/100g)
Range 0.0 to 20.0%
Accuracy ±0.4%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-32S

Phosphoric Acid Refractometer PAL-32S

Close

"Pocket" Sodium Bicarbonate Refractometer PAL-64S

PAL-64S is suitable to measure the concentration of Sodium bicarbonate/water solution.
Specifications
Model PAL-64S
Cat.No. 4464
Scale Sodium bicarbonate (g/100g)
Range 0.0 to 10.0%
Accuracy ±0.3%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-64S

"Pocket" Sodium Bicarbonate Refractometer PAL-64S

Close

"Pocket" Sodium Tartrate Refractometer PAL-65S

PAL-65S is suitable to measure the concentration of Sodium tartrate /water solution.
Specifications
Model PAL-65S
Cat.No. 4465
Scale Sodium tartrate (g/100g)
Range 0.0 to 25.0%
Accuracy ±0.2%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world

PAL-65S

"Pocket" Sodium Tartrate Refractometer PAL-65S

Close

"Pocket" Potassium Phosphate Refractometer PAL-70S

PAL-70S is suitable to measure the concentration of Potassium phosphate/water solution.
Specifications
Model PAL-70S
Cat.No. 4470
Scale Potassium phosphate
Range 0.0 to 15.0%
Accuracy ±0.3%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-70S

"Pocket" Potassium Phosphate Refractometer PAL-70S

Close

Digital Hand-held PAL-AntiRust

The high resolution of 0.01% makes the PAL-AntiRust ideal for measuring low-concentration solutions, such as corrosion inhibitor fluids.
Specifications
Model PAL-AntiRust
Cat.No. 4537
Scale AntiRust
Range AntiRust : 0.00 to 25.00%
Accuracy ±0.10%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-AntiRust

Digital Hand-held PAL-AntiRust

Close

Digital Hand-held PAL-Release Agent

This is for concentration of release agent.With high resolution of 2 decimal places 0.01%, you can use it for the management of slight changes in concentration.
Specifications
Model PAL-Release Agent
Cat.No. 4538
Range 0.00 to 25.00%
Minimum Indication 0.01%
Accuracy ±0.10%
Temperature compensation 10 to 100゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-Release Agent

Digital Hand-held PAL-Release Agent

Close

For Hydrocarbon Cleaner Contamination PAL-Hydrocarbon Cleaner

Displays Contam. (oil) % dissolved in hydrocarbon cleaner solution.

This instrument displays the Contam. (oil) % dissolved in hydrocarbon cleaner solution used in cleaning processes. If new cleaning solution is first measured and recorded on the instrument, then contaminated solution will display as "Contam. (oil)%." This measurement can be used to determine the timing of when to change (or distill) the cleaning solution.
Specifications
Model PAL-Hydrocarbon Cleaner
Cat.No. 4558
Scale Contam. %
Range Contam. % :0.0 to 30.0%
Accuracy ±1.0%
Temperature compensation 10 to 100 ゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-Hydrocarbon Cleaner

For Hydrocarbon Cleaner Contamination PAL-Hydrocarbon Cleaner

Close

“Pocket” Ethyl alcohol refractometer PAL-Whiskey

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Whiskey
Cat.No. 4540
Scale Ethyl alcohol
Range Ethyl alcohol : 0.0 to 53.00%
Accuracy Ethyl alcohol: ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Whiskey

“Pocket” Ethyl alcohol refractometer PAL-Whiskey

Close

“Pocket” Ethyl alcohol refractometer PAL-Vodka

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Vodka
Cat.No. 4541
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Vodka

“Pocket” Ethyl alcohol refractometer PAL-Vodka

Close

“Pocket” Ethyl alcohol refractometer PAL-Tequila

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Tequila
Cat.No. 4542
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Tequila

“Pocket” Ethyl alcohol refractometer PAL-Tequila

Close

“Pocket” Ethyl alcohol refractometer PAL-Shochu

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Shochu
Cat.No. 4543
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Shochu

“Pocket” Ethyl alcohol refractometer PAL-Shochu

Close

“Pocket” Ethyl alcohol refractometer PAL-Gin

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Gin
Cat.No. 4544
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Gin

“Pocket” Ethyl alcohol refractometer PAL-Gin

Close

“Pocket” Ethyl alcohol refractometer PAL-Rum

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Rum
Cat.No. 4545
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30℃
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Rum

“Pocket” Ethyl alcohol refractometer PAL-Rum

Close

“Pocket” Ethyl alcohol refractometer PAL-Brandy

This model has the ethyl alcohol scale, and concentrations are displayed in mL/100mL.
Specifications
Model PAL-Brandy
Cat.No. 4546
Scale Ethyl alcohol
Range 0.0 to 53.00%
Accuracy ±1.0%
Temperature compensation 5 to 30゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.

PAL-Brandy

“Pocket” Ethyl alcohol refractometer PAL-Brandy

Close

Digital Hand-held "Pocket" Refractometer PAL-Plato

The PAL-Plato is designed for breweries to measure the specific gravity of sweet wort in degrees Plato.Advantages of the PAL-Plato include : Two buttons for easy operation, an LCD screen for objective readings, and Automatic Temperature Compensation up to 75ºC (212ºF)! Additionally, taking measurements with the PAL-Plato only requires a few drops of sample, and it provides accurate readings within 3 seconds!
Specifications
Model PAL-Plato
Cat.No. 4590
Scale Plato
Range Plato : 0.0 to 30.0゚P
Resolution Plato : 0.1゚P
Temperature : 0.1゚C
Accuracy ± 0.2゚P
Temperature compensation 10 to 75゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-Plato

Digital Hand-held "Pocket" Refractometer PAL-Plato

Close

Wine Refractometer PAL-79S

PAL wine series are light and compact.PAL-79S has the scale of T.A.1990.
Specifications
Model PAL-79S
Cat.No. 4479
Scale T.A.1990
Range 0.0 to 26.0%
Accuracy ± 0.2%
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-79S

Wine Refractometer PAL-79S

Close

Wine Refractometer PAL-80S

PAL's wine series are light and compact, it is portable for both indoor use and outdoors. PAL-80S has the scale of T.A.1971.
Specifications
Model PAL-80S
Cat.No. 4480
Scale T.A.1971
Range 0.0 to 25.0%
Accuracy ± 0.2%
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-80S

Wine Refractometer PAL-80S

Close

Wine Refractometer PAL-83S

PAL wine series are light and compact, it has the scale of KMW (Babo).
Specifications
Model PAL-83S
Cat.No. 4483
Scale KMW (or Babo)
Range 0.0 to 40.0°
Accuracy ±0.2°
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-83S

Wine Refractometer PAL-83S

Close

Wine Refractometer PAL-84S

PAL wine series are light and compact, it is the scale of Baume.
Specifications
Model PAL-84S
Cat.No. 4484
Scale Baume
Range 0.0 to 21.0°
Accuracy ± 0.2°
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-84S

Wine Refractometer PAL-84S

Close

Wine Refractometer PAL-86S

PAL wine series are light and compact, it has dual scales of Oe (GER) and Brix.
Specifications
Model PAL-86S
Cat.No. 4486
Scale Oe (GER) / Brix
Range Oe (GER) : 0 to 240°
Brix : 0.0 to 53.0%
Accuracy Oe (GER) : ± 1°
Brix : ± 0.2%
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-86S

Wine Refractometer PAL-86S

Close

Wine Refractometer PAL-87S

PAL wine series are light and compact.PAL-87S has the dual scales of Oe (Oechsle) and Brix.
Specifications
Model PAL-87S
Cat.No. 4487
Scale Oe (Oechsle)/Brix
Range Oe (Oechsle) : 0 to 240°
Brix : 0.0 to 53.0%
Accuracy Oe (Oechsle) : ± 1°
Brix : ± 0.2%
Temperature compensation 10 to 40°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

* Calibration Certificate : Contact an ATAGO representative for details.

· USB Battery Charger : RE-34801

PAL-87S

Wine Refractometer PAL-87S

Close

Pocket Urine Specific Gravity Refractometer PAL-10S

The PAL-10S is a digital hand-held compact refractometer to measure urine S.G. To operate it, simply place a drop of urine on the prism top and press the "Start"key. Then, the urine S.G. value will be displayed on the LCD instantly.
Specifications
Model PAL-10S
Cat.No. 4410
Scale Urine (S.G.)
Range Urine S.G. : 1.0000 to 1.0600
Resolution Urine S.G. : 0.0001
Accuracy Urine S.G. : ±0.001
Temperature compensation 10 to 35°C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· STRAP : RE-39410

· JORDAN for PAL(Silicon Cover) : RE-39414

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

· 10% Sucrose (±0.03%) : RE-110010

* Calibration Certificate : Contact an ATAGO representative for details.

Patent for Design Registration No. ZL200310103015.2 (China)
Patent for Invention Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-10S

Pocket Urine Specific Gravity Refractometer PAL-10S

Close

Digital Hand-held PAL-11S

Blood Serum Protein Measurements with Only a Small Amount of Sample

The Digital Hand-held "Pocket" Blood Serum Protein Refractometer PAL-11S is simple to operate, allowing anyone to take precise and accurate blood serum protein measurements quickly and easily. It requires only a small amount of sample and measurement time is just 3 seconds. Its waterproof design allows the unit to be fully rinsed under running water, making clean-up after measurements a breeze.A small volume sample adaptor is included as a standard accessory.
Specifications
Model PAL-11S
Cat.No. 4401
Range Serum protein scale: 0.0~12.0g/100mL
Resolution 0.2g/100mL
Accuracy ±0.2g/100mL
Temperature compensation 10 to 35゚C
Included Accessories A very small amount of sample adapter standard attachment
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-11S

Digital Hand-held PAL-11S

Close

Ethyl alcohol Meter PAL-33S

This model is suitable for measuring the concentration of ethylalcohol water solution(ml/100ml)
Specifications
Model PAL-33S
Cat.No. 4433
Scale Ethyl alcohol (ml/100ml)
Range Ethyl alcohol : 0.0 to 53.0%
Resolution Ethyl alcohol : 0.5%
Temperature : 0.1゚C
Accuracy ±1.0%
Temperature compensation 5 to 30゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-33S

Ethyl alcohol Meter PAL-33S

Close

Ethyl alcohol Meter PAL-34S

This model is suitable for measuring the concentration of ethylalcohol water solution(g/100g)
Specifications
Model PAL-34S
Cat.No. 4434
Scale Ethyl alcohol (g/100g)
Range Ethyl alcohol : 0.0 to 45.0%
Resolution Ethyl alcohol : 0.5%
Temperature : 0.1゚C
Accuracy ±1.0%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-34S

Ethyl alcohol Meter PAL-34S

Close

Digital Hand-held PAL-36S

This model is suitable for measuring the concentration of methylalcohol water solution(g/100g)
Specifications
Model PAL-36S
Cat.No. 4436
Scale Methyl alcohol (g/100g)
Range Methyl alcohol : 0 to 35%
Resolution 1%
Accuracy ±2%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-36S

Digital Hand-held PAL-36S

Close

Isopropyl alcohol Refractometer PAL-37S

This is for measuring the concentration of Isopropyl alcohol water solution by g/100g.
Specifications
Model PAL-37S
Cat.No. 4437
Scale Isopropyl alcohol (g/100g)
Range Isopropyl alcohol : 0.0 to 60.0%
Resolution Isopropyl alcohol : 0.2%
Temperature : 0.1゚C
Accuracy ±0.6% upto 30% and ±1.6% upto 60%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-37S

Isopropyl alcohol Refractometer PAL-37S

Close

Isopropyl alcohol Refractometer PAL-131S

This is for measuring the concentration of Isopropyl alcohol water solution by ml/100ml.
Specifications
Model PAL-131S
Cat.No. 4530
Scale Isopropyl alcohol (ml/100ml)
Range Isopropyl alcohol : 0.0 to 20.0%
Accuracy ±0.6%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

PAL-131S

Isopropyl alcohol Refractometer PAL-131S

Close

Polyvinyl alcohol Refractometer PAL-85S


Specifications
Model PAL-85S
Cat.No. 4485
Scale Polyvinyl alcohol
Range Polyvinyl alcohol : 0.0 to 20.0%
Accuracy ±0.2%
Temperature compensation 10 to 35゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-85S

Polyvinyl alcohol Refractometer PAL-85S

Close

Digital Hand-held PAL-13S


Specifications
Model PAL-13S
Cat.No. 4413
Scale Creatine (g/100g)
Temperature
Range Creatine : 0.0 to 10.0%
Temperature : 10.0 to 40.0゚C
Resolution Creatine : 0.1%
Temperature : 0.1゚C
Accuracy Creatine : ±0.2%
Temperature : ±1゚C
Temperature compensation 10 to 40゚C
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-13S

Digital Hand-held PAL-13S

Close

"Pocket" Glycerin Refractometer PAL-23S

PAL-23S is suitable to measure the lower concentration of Glycerin water solution.
Specifications
Model PAL-23S
Cat.No. 4423
Scale Glycerin (Low concentration) (g/100g)
Range : 0.0 to 65.0%
Accuracy ±0.4%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-23S

"Pocket" Glycerin Refractometer PAL-23S

Close

"Pocket" Glycerin Refractometer PAL-24S

PAL-24S is suitable to measure the higher concentration of Glycerin/water solution.
Specifications
Model PAL-24S
Cat.No. 4424
Scale Glycerin (High concentration) (g/100g)
Range 60.0 to 99.0%(g/100g)
Accuracy ±0.4%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

· PAL-CASE : RE-39409

· JORDAN for PAL(Silicon Cover) : RE-39414

· STRAP : RE-39410

· Battery Case Cover With O-Ring : RE-38163

· USB Battery Charger : RE-34801

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-24S

"Pocket" Glycerin Refractometer PAL-24S

Close

Digital Hand-held "Pocket" Inulin Refractometer PAL-25S


Specifications
Model PAL-25S
Cat.No. 4425
Scale Inulin (g/100g)
Temperature
Range Inulin : 0.0 to 15.0% (g/100g)
Temperature : 10.0 to 40.0゚C
Resolution Inulin : 0.1%
Temperature : 0.1゚C
Accuracy Inulin : ±0.2%
Temperature : ±1゚C
Temperature compensation 10 to 40゚C
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-25S

Digital Hand-held "Pocket" Inulin Refractometer PAL-25S

Close

Digital Hand-held "Pocket" Mannitol Refractometer PAL-26S


Specifications
Model PAL-26S
Cat.No. 4426
Scale Mannitol (g/100g)
Temperature
Range Mannitol : 0.0 to 15.0%
Temperature : 10.0 to 40.0゚C
Resolution Mannitol : 0.1%
Temperature : 0.1゚C
Accuracy Mannitol : ±0.3%
Temperature : ±1゚C
Temperature compensation 10 to 40゚C
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.

PAL-26S

Digital Hand-held "Pocket" Mannitol Refractometer PAL-26S

Close

Digital Hand-held PAL-31S

PAL-31S is suitable to measure the concentration of
Formic acid/water solution.
Specifications
Model PAL-31S
Cat.No. 4431
Scale Formic acid (g/100g)
Range 0.0 to 20.0%
Accuracy ±1.0%
Temperature compensation 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)
PAL-31S

Digital Hand-held PAL-31S

Close

Digital Hand-held "Pocket" Sodium bromide Refractometer PAL-51S


Specifications
Model PAL-51S
Cat.No. 4451
Scale Sodium bromide (g/100g)
Temperature
Range Sodium bromide : 0.0 to 30.0%
Temperature : 10.0 to 40.0゚C
Resolution Sodium bromide : 0.1%
Temperature : 0.1゚C
Accuracy Sodium bromide : ±0.2%
Temperature : ±1゚C
Temperature compensation 10 to 40゚C
(Automatic Temperature Compensation)
Ambient Temperature 10 to 40゚C
Sample Volume 2 to 3 drops
Measurement Time About 3 seconds
Power Supply 2 × AAA Batteries
Battery Life About 11,000 measurements (When using AAA Batteries. About 1,500 times for PAL-S only)
International Protection Class IP65 Water resistant
Dimensions & Weight 5.5 × 3.1 × 10.9cm 100g (main unit only)

Patent for Invention Registration No. ZL200310103015.2 (China)
Patent for Design Registration No. ZL03303431.1 (China), 089244 (Taiwan)
Patent Granted in countries around the world.
