PRM series
PRM series

In-line Refractometer

PRM series

brix-master
ys

ATAGO's Efforts

PRM series
9 Reasons to Choose Our Inline Refractometer

High accuracy for low concentration samples.

High accuracy for low concentration samples.

The PRM series measures the Refractive Index, Brix, concentration/water content, mixing ratio, etc. of various solutions with high accuracy. In particular, the PRM-2000α can measure low-sugar beverages, cleaning solutions, wastewater, etc. that are below 2.000% Brix with a high accuracy of ± 0.007%.

Measureable at low and high temperatures.

Measureable at low and high temperatures.

The PRM series is equipped with automatic temperature compensation (ATC) and supports a wide range of temperatures from 5℃ to 100℃ (PRM-2000α is 5 to 90℃). Since the wetted surface can handle up to 160℃, use CIP and SIP cleaning with confidence!

Flat Sample Stage

Flat Sample Stage

By making the sample stage (wetted part) completely flat, the adhesion of the sample liquid to the prism surface is minimized and is more hygienic. The prism stage is re-polished in 1/100 mm increments during manufacturing to eliminate the chance of slight uneveness that may occur between the prism surface and the prism stage.

Enhanced Cleaning with a Prism Wiper or Ultrasonic Cleaner

Enhanced Cleaning with a Prism Wiper or Ultrasonic Cleaner

Due to their nature, some sample liquids will adhere or build up on the prism no matter what after longterm use. For these cases, ATAGO has designed both prism wiper and ultrasonic cleaning devices. Using either of these means is no need to stop the line or remove the in-line refractometer many times just to clean the prism when buildup occurs.

Compatiblity with strong acids and strong alkalis
(Hastelloy / Titanium)

Compatiblity with strong acids and strong alkalis (Hastelloy / Titanium)

For use with harsh chemicals, the wetted part of the PRM series can be customized. The PRM series is standard stainless steel but can be changed to Hastelloy or titanium by request. Because all the metal is shaved and polished in-house, we can flexibly respond to changes in materials.


Customizable User Scale

Customizable User Scale

In addition to Brix and refractive index, the PRM series has an additional special scale feature that will display the concentration % of a specific sample.Customers can customize their PRM inline refractometer's special scale by preparing and entering the sample's "refractive index vs. concentration (all temperatures)" data.If data is provided beforehand, we can also input the data for the customer instead.

38 years of long-selling, reliable quality

38 years of long-selling, reliable quality

Customers must stop production if there is an issue with the system or inline refractometer, which can cause a big impact.For that reason, reliability and a good track record are important points.The PRM series is a long-selling product that has been highly acclaimed around the world for 38 years.ATAGO provides excellent support and aftercare service from offices and service center around the world should you encounter any issue.

Alarm Function

Alarm Function

The PRM series is equipped with a function that outputs an alarm signal when a value that exceeds the set control range is detected.This is a very convenient function to quickly detect nonconformities in the production line.Using relay drive, it is possible to detect and control the occurrence of abnormal values ​​by lighting the alarm lamp, inputting to the sequencer, etc.Moreover, as a data output function, the recorder output (DC4mA ~ 20mA) and RS-232C output are an option.

Safe To Use with Food Related Equipment

食品関連設備でのご使用にも安心

ATAGO's inline refractometer meets the safety and health standard institutions EHEDG and 3-A Sanitary Standards requirement for instrumentation's wetted parts surface finish to be Ra 0.8 or less, clearing EC No 1935/2004 as well as FDA (21 CFR)-GRAS(Generally Recognized as Safe). These specifications clear the component requirements for stainless steel so the inline refractometer can be used with confidence.

PRM series
Case Study

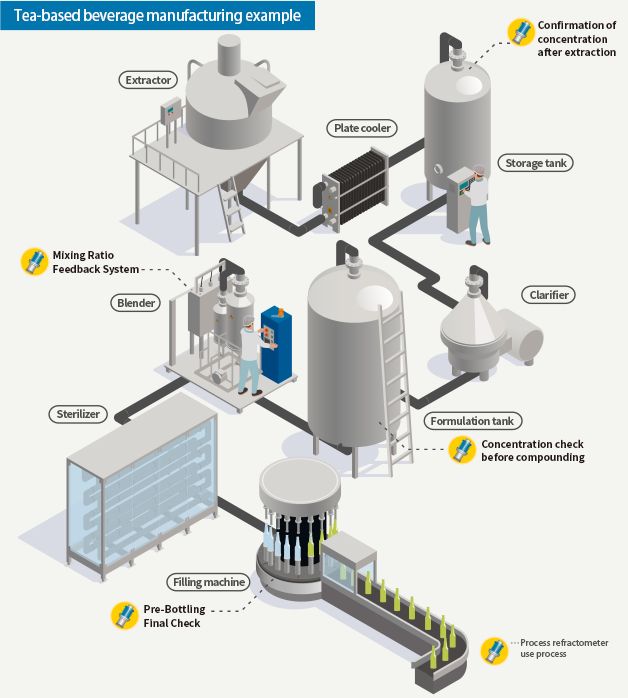

Tea-based beverage manufacturing example
POINT

Block nonconformities by process

Raw material manufacturing process

Check the concentration of the extract

Manage extraction yield by measuring the Brix of the extracted solution.Depending on the extraction rate, re-extraction may be performed.

Blending process

Mixing Ratio Feedback System

The mixing ratio can be detected in real time, and feedback is given so that there are no non-standard products.

Filling process

Pre-Bottling Final Check

A final check on the product before bottling is made to make sure it is within specifcations.It can also be used to reduce liquid loss by controlling the switching to water during cleaning.

PRM series
Applications

PRM series
Lineup

PRM series

Option

Custom orders available.
Contact ATAGO for further details.

For details, please contact ATAGO.

SUS(standard specification)

SUS(standard specification)

Stainless steel with high strength and excellent corrosion resistance.Sanitary specification.

Titanium

Titanium

Metal with high strength, light weight, corrosion resistance, heat resistance. In particular, it has higher corrosion resistance to salt than the stainless steel.

Hastelloy

Hastelloy

Alloy with high corrosion resistance and heat resistance. Alloy with high corrosion resistance and heat resistance.* Hastelloy is a trademark of Haines Corporation, USA.

PRM series and CM series fittings
that meet VARIVENT standards are also available.

For details, please contact ATAGO.

What is VARIVENT®?

VARIVENT® is a standard for pipeline installation. Mainly used in Europe, but also in countries around the world. The wetted parts of In-line Refractometers may be customized to work with VARIVENT® components. PRM series and CM series fittings that meet VARIVENT standards are also available.
* VARIVENT® is a registered trademark of GEA Tuchenhagen.

PRM series
Fitting

PRM series
Product details

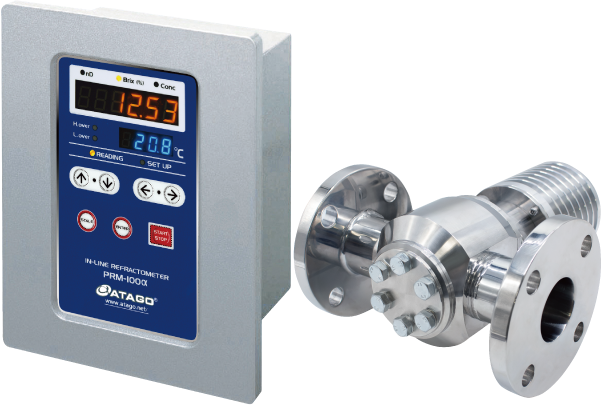

In-line Refractometer PRM-100α

PRM-100α $13,500.00 USD
The unit measures the refraction of light generated between the prism surface and a liquid sample. The PRM-100α is upgraded from the PRM-85 in the following aspects:
• Wider than ever 0.0 to 100.00% Brix range
• Improved measurement accuracy: Brix ±0.05%, nD ±0.00010
• Two options for setting the minimum indication decimal place
• Simple two-piece construction: detection section and operation display section
• Easy-to-read color display panel.
Simply attach the unit to a piping system to monitor food or beverage production, pharmaceutical production, industrial fluid, washing devices, dilution/mixing devices, etc. Continuously monitor water content and mixing ratio with successive measurements of refractive index, Brix, or concentration.
*The prism is specially designed to prevent solid materials from collecting on the surface, even after extended periods of use.
Specifications
Model PRM-100α
Cat.No. 3574
Measurement item Refractive Index (nD), Brix, concentration (%),temperature.
Range Refractive index (nD) : 1.32000 to 1.55700
Brix : 0.00 to 100.00%
Resolution Refractive index (nD) : 0.0001 or 0.00001
Brix : 0.1 or 0.01%
Accuracy Refractive index : ±0.00010
Brix : ±0.05%
Temperature compensation 5.0 to 100.0゚C
Wetted parts temperature resistance 5 to 150゚C
High and low limit setting High and low control limits can be set with keys.
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high- and low-limit settings (alarm output).
Cable Detection section - Display section (power supply 12V and RS-485)
Length: standard 15m (maximum up to 200m)
PRM-100α

In-line Refractometer PRM-100α

Close

In-line Brix Monitor PRM-100α-Titanium

PRM-100α-Titanium $16,000.00 USD
This is a model in which the wetted part if made of Titanium, while
standard model PRM-100α is made of SUS316L.
Please choose the right model according to chemical resistance of liquid to be measured.
Specifications
Model PRM-100α-Titanium
Cat.No. 3673
Measurement item Refractive Index (nD), Brix, concentration (%),temperature.
Range Refractive index (nD) : 1.32000 to 1.55700 Brix : 0.00 to 100.00%
Resolution Refractive index (nD) : 0.0001 or 0.00001 Brix : 0.1 or 0.01%
Accuracy Refractive index : ±0.00010 Brix : ±0.05%
Temperature compensation 5.0 to 100.0゚C
Wetted parts temperature resistance 5 to 150゚C
High and low limit setting High and low control limits can be set with keys.
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high- and low-limit settings (alarm output).
Cable Detection section - Display section (power supply 12V and RS-485) Length: standard 15m (maximum up to 200m)
PRM-100α-Titanium

In-line Brix Monitor PRM-100α-Titanium

Close

In-line Brix Monitor PRM-100α-Hastelloy

PRM-100α-Hastelloy $16,000.00 USD
This is a model in which the wetted part if made of Hastelloy, while
standard model PRM-100α is made of SUS316L.
Please choose the right model according to chemical resistance of liquid to be measured.
Specifications
Model PRM-100α-Hastelloy
Cat.No. 3674
Measurement item Refractive Index (nD), Brix, concentration (%),temperature.
Range Refractive index (nD) : 1.32000 to 1.55700 Brix : 0.00 to 100.00%
Resolution Refractive index (nD) : 0.0001 or 0.00001 Brix : 0.1 or 0.01%
Accuracy Refractive index : ±0.00010 Brix : ±0.05%
Temperature compensation 5.0 to 100.0゚C
Wetted parts temperature resistance 5 to 150゚C
High and low limit setting High and low control limits can be set with keys.
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high- and low-limit settings (alarm output).
Cable Detection section - Display section (power supply 12V and RS-485) Length: standard 15m (maximum up to 200m)
PRM-100α-Hastelloy

In-line Brix Monitor PRM-100α-Hastelloy

Close

In-line Refractometers PRM-2000α

PRM-2000α $13,500.00 USD

Introducing the newest PRM-2000α as an ideal In-line unit for Low Concentration solution!

It features a Brix range of 0 to 20% with a high accuracy of ±0.007% up to Brix 2.000% and ±0.050% from Brix 2.001 to 20.000%.It is suitable not only for low-sugar beverage but also cleaning solution.The detection section is able to withstand temperatures between -30 to 165℃ (during SIP / CIP).
Specifications
Model PRM-2000α
Cat.No. 3641
Measurement item Refractive index,Brix(sucrose, high-fructose corn syrup,sugar-free), concentration(%) ,Temperature
Range Refractive Index nD 1.32069 to 1.36500
Brix 0.000 to 20.000%
Resolution nD 0.00001
Brix 0.001%
Accuracy nD ±0.00001 (1.32069 to 1.33681)
nD ±0.00010 (from 1.33682 up)
Brix ±0.007% (0.000 to 2.000%)
Brix ±0.050% (from 2.001% up)
Temperature compensation 5 to 90゚C
Wetted parts temperature resistance -30 to 165゚C
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high- and low-limit settings (Alarm output)
Cable Between the detection section and calculation display section (15m) (maximum up to 200m)
PRM-2000α

In-line Refractometers PRM-2000α

Close

Process Refractometer PRM-TANK100α(FER)

PRM-TANK100α(FER) $13,000.00 USD

This model can be directly installed to the side of the tank

A process refractometer PRM-TANK100α(FER) has a redesigned prism head of PRM-100α which makes installation on the side of a tank possible. This revolutionary model can measure real time concentration in the tank, extraction, boiling, mixing fermentation, juicing, filtration, etc. The detection section is completely flat to prevent sample accumulation even during extended measurement time.
Specifications
Model PRM-TANK100α(FER)
Cat.No. 3577
Measurement item Refractive Index (nD)
Brix,concentration,temperature
Range Refractive index (nD) : 1.32000 to 1.55700
Brix : 0.00 to 100.00%
Temperature : -5.0~160.0℃
Resolution Refractive index (nD) : 0.0001 or 0.00001
Brix : 0.1 or 0.01%
Accuracy Refractive index (nD) : ±0.00010
Brix : ±0.05%
Temperature compensation 5.0 to 100.0゚C
Output RS-232C, DC4 to 20mA
Alarm output Output alarm when measurement exceeds upper and lower limit
Cable Cable between the detection and display units : 15m standard (extension available up to 200m)
PRM-TANK100α(FER)

Process Refractometer PRM-TANK100α(FER)

Close

In-line Refractometer PRM-TANK2000α(FER)

Tank direct mounting model

The PRM-TANK2000α (FER) is a process refractometer with a ferrule connection that can be attached directly to the tank.
We measure tea, soft drinks, low-concentration cleaning liquids, etc. with high accuracy. The wetted part of the instrument is completely flat and sanitary.
Specifications
Model PRM-TANK2000α(FER)
Cat.No. 3578
Measurement item Refractive index,Brix(sucrose, high-fructose corn syrup,sugar-free), concentration(%) ,Temperature
Range Refractive Index (nD) : 1.32069 to 1.36500
Brix : 0.000 to 20.000%
Resolution nD : 0.00001
Brix : 0.001%
Accuracy nD : ±0.00001 (1.32069 to 1.33681)
nD : ±0.00010 (from 1.33682 up)
Brix : ±0.007% (0.000 to 2.000%)
Brix : ±0.050% (from 2.001% up)
Temperature compensation 5 to 90゚C
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high- and low-limit settings (Alarm output)
Cable Between the detection section and calculation display section (15m) (maximum up to 200m)
PRM-TANK2000α(FER)

In-line Refractometer PRM-TANK2000α(FER)

Close

Process Refractometer PRM-TANKα(FLN)

PRM-TANKα(FLN) $13,000.00 USD
The PRM-TANKα(FLN) Process Refractometer features a new design of the detection unit, which is to be mounted on the wall of a vessel. It is ideal for a variety of vessel types, such as distillers, condensers, blenders, fermenters, extractors, and filtration tanks. The flat sample stage prevents sample buildups, keeping the prism clean over an extended period of time.
Specifications
Model PRM-TANKα(FLN)
Cat.No. 3575
Measurement item Refractive Index (nD)
Brix,concentration, temperature
Range Refractive index (nD) : 1.31700 to 1.51000
Brix : 0.00 to 85.00%
Resolution Refractive index (nD):0.0001 or 0.00001
Brix : 0.1 or 0.01%
Accuracy Refractive index (nD) : ±0.0001
Brix : ±0.1%
Temperature compensation 5.0 to 100.0゚C
Output RS-232C, DC4 to 20mA
Alarm output Open-collector output for high and low limit settings (alarm output)
Cable Cable between the detection and display units : 15m standard (extension available up to 200m)
PRM-TANKα(FLN)

Process Refractometer PRM-TANKα(FLN)

Close

Prism wiper RE-67590

RE-67590 $495.00 USD
The prism wiper is an optional product that can be attached directly to the detecting part of the installed in-line refractometer in the piping and manually wipes the adhering substances on the prism surface.
Specifications
Model RE-67590
Other specs For straight piping.
There is no need to repeatedly remove the inline refractometer.
RE-67590

Prism wiper RE-67590

Close
