THE BrixMeister ys

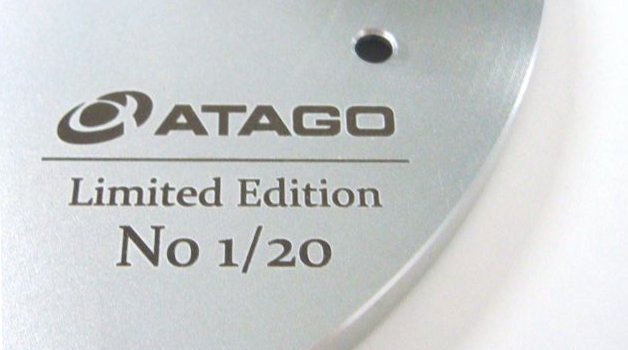

VISCO Limited Edition

Low to High Viscosity Covering Every Samples

Digital Viscometer　VISCO
Digital Viscometer　VISCO

Digital Viscometer

VISCO™

JP: 1344031, 1553531
TW: D176013
US: US D796,362 S
US D922,221S
EUIPO: 002906149-0001
US D820702S, US D802703S, ZL 2019 3 0711973.X
KR: 30-0917570, 30-0917566, DM/205380
IN: 003665546-0001, 003665546-0002
SDGs

【VISCO】Applications

Hand Cream

Toothpaste

Yogurt

Ice Cream

Sauce

Curry

Tomato Paste

Butter

Chocolate

Beverage

Batter

Shampoo

Conditioner

Paint

Cleaning solution

Engine oil

Thickener

Bean paste

Miso

Rice Porridge

VISCO™'s 3 "ONE's"

ONE TOUCH™

VISCO is very easy to set-up. The spindle can be attached with just "one touch" — simply insert the spindle in the instrument.Absolutely no complicated set-up required.

ONE HAND™

Measurement preparation can easily be done with just one hand. Place the beaker underneath the pre-set area and place the instrument on the stand. No troublesome height adjustment necessary.

ONE BUTTON™

Operation requires only one dial button.All operations can be performed with the simple act of "sliding" or "pushing" the dial button. No more accidental operations due to pushing the wrong button.

【 VISCO™ 】 — 7 Reasons — Why VISCO™ is Chosen

Easy Operation

Easy Operation

The assembly takes 30 seconds. It frees you from the hassle of preparation, cleaning up, and removes hesitation for measurements. Only one button to deal with. From setting up to measurements, you can do it with one hand. The state of the actual assembly is here.

Small Sample Volume

Small Sample Volume

The amount of sample required for measurement is only 15 mL or 100 mL. The time to wash the beaker is greatly reduced, too.

Disposable Containers

Measureable even with a paper cup

VISCO™ can measure using paper cups or plastic cups. It's disposable and does not require you to wash the beakers. It is safe even in the areas where glassware is restricted.

Lab to the Production Site

Lab to the Production Site

ATAGO's viscosity meter VISCO™ is very lightweight and compact with a height of 20 cm and a weight of 895 g. Easy to carry from the lab to the production site.

Battery Powered

Battery Powered

VISCO™ is powered by AC power supplies or batteries. The battery life is about seven hours. Easy measurements, any place and in any situation.



Incredible Cost Performance

Incredible Cost Performance

The price of VISCO™ is less than half the price of a B-type viscometer. ATAGO provides high-value, high-quality products at the right price for customers to experience it first-hand and use it a lot.

Good with Low Viscosity

Good with Low Viscosity

Low viscosity samples can be measured with VISCO™. ATAGO’s VISCO™ has an adapter for low viscosity samples.

Setup Video Guide Setup Video Guide
Reasons for Selecting the VISCO
KamishibaiHTML_Reasons for Selecting the VISCO

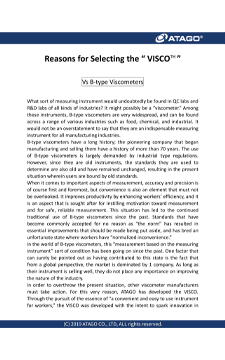

PDF_Reasons for Selecting the VISCO
Reasons for Selecting the VISCO
KamishibaiHTML_Reasons for Selecting the VISCO
PDF_Reasons for Selecting the VISCO

【VISCO™ Temp Controller】～Six Points～

The temperature controller is a lightweight, compact and constant temperature device that does not require water circulation.

Because the viscosity is greatly affected by the temperature of the sample, it is very important to control the temperature of the sample when measuring viscosity. In general, a constant temperature water bath takes time to adjust the temperature because it circulates water. In addition, it requires a large space. It also requires preparation and maintenance such as preparing water and drying water properly after use. The VISCO Temp Controller is a lightweight and compact constant temperature device that has been developed to save the time and effort brought about by conventional constant temperature water bath.
VISCO Temp Controller

US:US D922,221S

CN:ZL 2019 3 0711973.X

KR:DM/205380

No water required

No water required

Since the peltier is used to control the temperature, the sample can be constantly warmed without the use of water. The heavy labor is no longer necessary,no longer a need to worry about algae and mold.

Reduced Time Spent

Reduced Time Spent

Because the container where the sample is placed is made of aluminum, the heat from the peltier is transferred to the sample much more efficiently requiring a shorter time.

Lightweight and Compact

Lightweight and Compact

The total weight is about 4 kg and temperature control unit only is merely 2.7 kg. Less than half the weight of a typical constant temperature water bath. The size is just about the size of VISCO™ fitting perfect, without worrying about workspace.

Simple Operation

Simple Operation

It is operated by two buttons. Despite the common notion that “apparatus and devices used for experiments are considered difficult without being a researcher or expert,” it is an easy to use product that anyone can use.

Uncompromised Design

Uncompromised Design

A novel and stylish design that reverses the image of such conventional viscosity measurement, It can offer not only usability, but also an environment where users can comfortably measure viscosity.



Environmentally friendly

Environmentally friendly

Stress free from loud noise or vibration and environmentally friendly because it does not use refrigerants such as fluorocarbons.

VISCO™ can be used for other applications

Condiment

Olive oil

Honey and Jam

Liquid Egg

Jelly and agar

Cosmetics

Adhesive

Water glass

Resin, Polymer etc.

Insulator etc.

Glycerin

Lubricant

Slurry









Please feel free to contact us here about other applications.

【 VISCO™ 】 User Testimonials

Ezaki Glico Co., Ltd.

VISCO™ for its portability

Foremost Blue Seal Ltd.

VISCO™ for product development

Tsuru Miso Jyouzou Co., Ltd.

VISCO™ for important maintenance of viscosity

Muginoho Co., Ltd.

VISCO™ for its portability and ease of operation

【 VISCO™ 】Product Information

Model

VISCO™-895

Light weight model Aluminum body 895g

VISCO-895

VISCO™

Stainless body 1200g

VISCO

Package

VISCO™ PackageE

New!
Includes Temp controller
VISCO/VISCO895

PackageE

VISCO™ PackageA

Includes adapter for disposable containers

PackageA

PackageB

Includes adapter for low viscosity

PackageB

Temp Controller VISCO™ Temp Controller Complete

All in one

New!
Compatible for
VISCO/VISCO895/VISCO B(L)

All Set

For all range including low-viscosity

VISCO/VISCO895

For all range including low-viscosity

For normal viscosity

VISCO/VISCO895

For normal viscosity

Function and Design

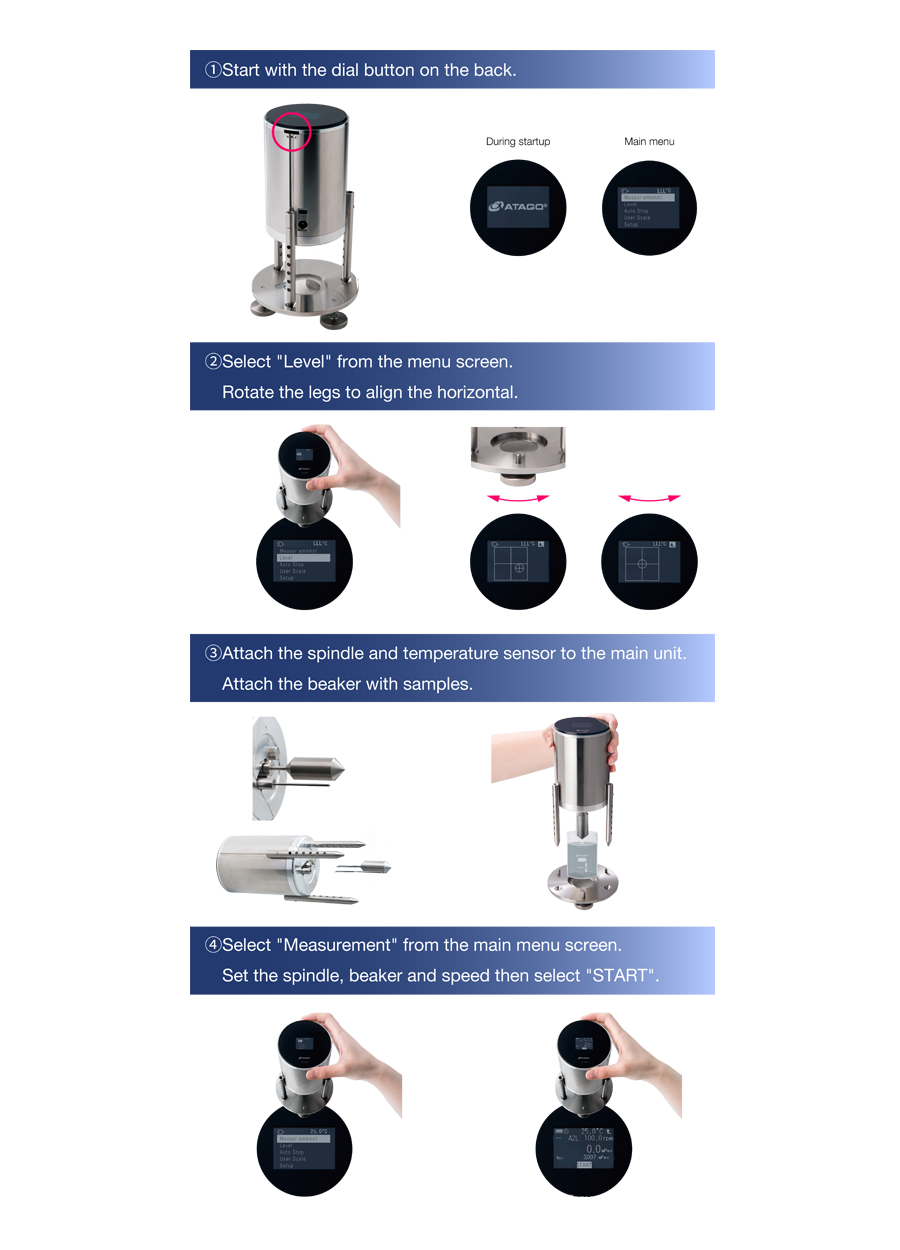

How to use

Calibration compares the true value and the value measured from the instrument. Calibration is an important task to ensure the reliability of the measurement results. Calibration is recommended when the measurement environment has changed drastically or when the measurement results are out of the norm. If you are considering routine calibration, we recommend that you decide the frequency based on the circumstance in which the instrument is used and past measurement results. ATAGO's viscometer VISCO™ provides the following standard solutions:
The standard solutions are available in various viscosity. It is recommended to calibrate with a standard solution that is close to the viscosity of samples being measured.


●VISCO™ standard solution●

Part number Part name Contents
RE-89030 Viscosity Standard Liquid 2 100mL
RE-89031 Viscosity Standard Liquid 5 100mL
RE-89036 Viscosity Standard Liquid 200 100mL
RE-89037 Viscosity Standard Liquid 500 100mL
RE-89038 Viscosity Standard Liquid 1000 100mL
RE-89039 Viscosity Standard Liquid 2000 100mL
RE-89053 Viscosity Standard Liquid 20 500mL
RE-89054 Viscosity Standard Liquid 50 500mL
RE-89055 Viscosity Standard Liquid 100 500mL
RE-89056 Viscosity Standard Liquid 200 500mL
RE-89057 Viscosity Standard Liquid 500 500mL
RE-89058 Viscosity Standard Liquid 1000 500mL
RE-89059 Viscosity Standard Liquid 2000 500mL

●Standard Solution with JCSS●

If you would like a standard solution with JCSS calibration certificate, please click here.

Part number Part name Contents
RE-89010 Viscosity Standard Liquid JS2.5 500mL
RE-89011 Viscosity Standard Liquid JS５ 500mL
RE-89012 Viscosity Standard Liquid JS10 500mL
RE-89013 Viscosity Standard Liquid JS20 500mL
RE-89014 Viscosity Standard Liquid JS50 500mL
RE-89015 Viscosity Standard Liquid JS100 500mL
RE-89016 Viscosity Standard Liquid JS200 500mL
RE-89017 Viscosity Standard Liquid JS500 500mL
RE-89018 Viscosity Standard Liquid JS1000 500mL
RE-89019 Viscosity Standard Liquid JS2000 500mL
RE-89020 Viscosity Standard Liquid JS14000 500mL
RE-89021 Viscosity Standard Liquid JS52000 500mL
RE-89022 Viscosity Standard Liquid JS160000 500mL

Feel free to order or consult from this form Please contact me.

●Container●

Part number Part name
RE-79100 15mL Beaker
RE-79101 100mL Beaker
RE-78141 Cup Adapter (100pcs of paper cups are included)
RE-79102 Paper Cup (90mL, 100pcs）

●Ultra Low Adapter●

Part number Part name
RE-77120 Ultra Low Adapter (ULA)
RE-77107 UL spindle (with hook and hook holder)
RE-77121 Sample cylinder (with cap and o-ring)
RE-77117 UUL spindle 3pcs (with hook and hook holder)

●Temperature sensor●

Part number Part name
RE-75540 Temperature sensor

●Spindle●

Part number Part name
RE-77104 A1 Spindle
RE-77105 A2 Spindle
RE-77106 A3 Spindle

●Set of spindles●

Part number Part name
RE-77114 A1 Spindle Spindle 5pcs
RE-77115 A2 Spindle Spindle 5pcs
RE-77116 A3 Spindle Spindle 5pcsdle 5pcs
RE-77100 Set of spindles (A1,A2,A3)

※Having multiple spindles can eliminate washing after each used for improved efficiency.


Feel free to order or consult from this form Please contact me.

What is a Viscometer?

Viscosity Types There are different types viscometers that uses various measurement methods.
For example, in the Japanese Industrial Standard JIS Z 8803, viscometers are classified as follow:
• Capillary viscometers        • Falling ball viscometers
• Rotational viscometers     • Vibrational viscometers
There are also other measurement methods such as viscosity cups and Line Spread Tests (LST).
ATAGO's viscosity meter VISCO™ is measured on a principle called rotational viscosity.

Principle of Rotational Viscometer

Principle of Rotational Viscometer Rotational viscometer is one of the most common viscometers used. The structure is simple, easy to use, and the measurement range is wide and can be measured with high accuracy. When a cylindrical spindle is placed in the sample and rotated at a constant speed, the viscosity is determined by measuring the torque (shear stress) acting on the cylindrical surface. There are different types of spindles: coaxial double cylinder, single cylindrical, and cone and plate. The cone plate type can determine the flow characteristics of non-Newtonian fluids by changing the rotational speed.

QI'm considering purchasing, can I try it before I buy it?

AFree trial is available.


QHow do I choose right spindle and speed?

AStandard VISCO™ comes with three types of spindles. Please contact our sales department for the selection criteria. Guidelines for each type of beaker size, speed, and spindle are also available in the instruction manual. Note that the torque should be between 10 and 100% because load less than 10% will not have enough load on the spring.


QWhen the speed or the beaker size is changed, a different viscosity is measured. Is it measuring correctly?

AWhen the rotational speed and the beaker size change, the viscosity also changes. This is because viscosity is affected by measurement conditions. When measuring a sample, make the measurement conditions consistent.


QCan VISCO™ be calibrated?

AVISCO™ can be calibrated using a standard solution. For the value of the standard solution, please refer to the measured value in the instruction manual.


QIs there a correlation with the B-type viscometer?

ASome samples do and others don't have correlation. Check to see the correlation with the free trial unit. If there is correlation, you can use the user scale feature to set the same value to be displayed.


QCan I adjust the temperature?

ATemp controller can be used. When using a waterbath, be careful not let the water in the sample. Also, if you are measuring a high temperature sample, set the wait time and create a temperature compensation table for the measurement sample. For more information, please contact our sales department.


QIs it possible to output data？

AData can be output using the AUSB-Mini-B cable.


VISCO™ [Product details]

Digital Viscometer VISCO™

VISCO™ $1,800.00 USD
拡大画像
VISCO is a portable and compact size
Can be powered by battery which makes it possible to measure anywhere anytime.
VISCO is a digital display which makes it possible for anyone to see easily.
Only small volume of sample is required to measure.
From setting up the VISCO to measurement, it can be done with one hand and only have to deal with one button to operate.
Can be measured using disposable cup.(package A)
For a low viscosity sample, there is a low viscosity sample adapter which make it possible to measure from 1 - 2,000 mPa・S.（package B)
Specifications
Model VISCO™
Cat.No. 6800
Measurement item Viscosity / Kinematic Viscosity・Temperature・Torque%
Range Viscosity / Kinematic Viscosity：
A1　50 to 16,000,000mPa・s / 50 to 16,000,000cP
A2　100 to 37,000,000mPa・s / 100 to 37,000,000cP
A3　500 to 99,999,999mPa・s / 500 to 99,999,999cP
UL　1～2,000mPa・s
Torque：0.0 to 100.0％ (recommended torque: 10.0 to 100.0％)
Temperature：0.0 to 100.0℃/32.0 to 212.0°F
Speed 0.01 to 250rpm
Number of Speeds: 28
Resolution Viscosity / Kinematic Viscosity：
Lower than 100mPa･s：0.01mPa･s
100mPa･s or higher lower than 10,000mPa･s：0.1mPa･s
10,000mPa･s or higher：1mPa･s
Torque：
Lower than 10.0%：0.01%
10.0% or higher：0.1%
Temperature：01℃/0.1°F
Accuracy Viscosity / Kinematic Viscosity : ±1% of Maximum Viscosity
Temperature: ±0.2℃、±0.4°F
Power Supply ・LR6 / AA alkaline batteries (x4)
・AC adapter
Computer Communication Output: USB - PC
Dimensions & Weight Main unit：120(W)ｘ120(D)ｘ200.6(H)mm/1.2kg

· Temperature sensor : RE-75540

· SpindleA1 : RE-77104

· SpindleA2 : RE-77105

· SpindleA3 : RE-77106

· Beaker S : RE-79100

· Beaker L : RE-79101

· Cup Adaptor : RE-78141

· Paper Cup : RE-79102

· Standard liquid JS200 : RE-89016

· Standard liquid JS500 : RE-89017

· Standard liquid JS2000 : RE-89019

· Ultra Low Adapter (ULA)- Sample Adapter for Low Viscosity Sample : RE-77120
VISCO™

Digital Viscometer VISCO™

Close

Digital Viscometer VISCO™-895

VISCO™-895 $1,800.00 USD
拡大画像
By changing the material used for body, legs and stand to alminium, unit weight is now 895g as described in the model name. Appearance and all features remain unchanged, while achieving 25% weight reduction compared to existing VISCO™.

Ambassador Banner
Specifications
Model VISCO™-895
Cat.No. 6820
Measurement item Viscosity / Kinematic Viscosity・Temperature・Torque%
Range Viscosity / Kinematic Viscosity：
A1　50 to 16,000,000mPa・s / 50 to 16,000,000cP
A2　100 to 37,000,000mPa・s / 100 to 37,000,000cP
A3　500 to 99,999,999mPa・s / 500 to 99,999,999cP
U1　1～2,000mPa・s
Torque：0.0 to 100.0％ (recommended torque: 10.0 to 100.0％)
Temperature：0.0 to 100.0℃ / 32.0 to 212.0°F
Speed 0.01 to 250rpm
Number of Speeds: 28
Accuracy Viscosity / Kinematic Viscosity :
±1% of Maximum Viscosity (Refer to the "Maximum Measurement Values Guideline Chart," from p.34)
Temperature: ±0.2℃、±0.4°F
Power Supply LR6 / AA alkaline batteries (x4)
AC adapter
Computer Communication Output: USB - PC
Dimensions & Weight Main unit：120(W)ｘ120(D)ｘ200.6(H)mm / 0.895kg

· Temperature sensor : RE-75540

· SpindleA1 : RE-77104

· SpindleA2 : RE-77105

· SpindleA3 : RE-77106

· Beaker S : RE-79100

· Beaker L : RE-79101

· Cup Adaptor : RE-78141

· Paper Cup : RE-79102

· Standard liquid JS200 : RE-89016

· Standard liquid JS500 : RE-89017

· Standard liquid JS2000 : RE-89019

· Ultra Low Adapter (ULA)- Sample Adapter for Low Viscosity Sample : RE-77120
VISCO™-895

Digital Viscometer VISCO™-895

Close

Digital viscometer VISCO™ Package A

VISCO™ $1,900.00 USD
拡大画像
Using disposable containers eliminates the hassle of cleaning after measurement.Package A, which includes a specialized adapter for use with disposable containers such as paper cups, is available at ATAGO.
Specifications
Model VISCO™ Package A
Cat.No. 6810
Package Contents ・VISCO (main unit) + standard accessories
・Cup adapter
　*100 pcs of paper cups are included.
VISCO™

Digital viscometer VISCO™ Package A

Close

Digital viscometer VISCO™-895 VISCO Package A

VISCO™-895 $1,900.00 USD
拡大画像
Using disposable containers eliminates the hassle of cleaning after measurement. Package A, which includes a specialized adapter for use with disposable containers such as paper cups, is available at ATAGO.
Specifications
Model VISCO™-895 VISCO Package A
Cat.No. 6830
Package Contents ・VISCO-895 (main unit) + standard accessories
・Cup adapter
　*100 pcs of paper cups are included.
VISCO™-895

Digital viscometer VISCO™-895 VISCO Package A

Close

Digital Viscometer VISCO™ Package B

VISCO™ $2,400.00 USD
拡大画像
Measurement of low viscosity （1～2,000mPa・s）is possible.
A package that comes with Ultra Low Adapter (ULA) for measuring low viscosity sample and VISCO (main unit) is available.
Specifications
Model VISCO™ Package B
Cat.No. 6811
Package Contents ・VISCO (main unit) + standard accessories
・Ultra Low Adapter(RE-77120)
VISCO™

Digital Viscometer VISCO™ Package B

Close

Digital Viscometer VISCO™-895 Package B

VISCO™-895 $2,400.00 USD
拡大画像
Measurement of low viscosity （1～2,000mPa・s）is possible.
A package that comes with Ultra Low Adapter (ULA) for measuring low viscosity sample and VISCO-895 (main unit) is available.
Specifications
Model VISCO™-895 Package B
Cat.No. 6831
Package Contents ・VISCO-895 (main unit) + standard accessories
・Ultra Low Adapter(RE-77120)
VISCO™-895

Digital Viscometer VISCO™-895 Package B

Close

Digital viscometer VISCO™ Package E

VISCO™ $3,980.00 USD
拡大画像
It is a package version of VISCO main body (including accessories) and VISCO Temp Controller Complete constant temperature + low viscosity measurement set (VISCO).
Specifications
Model VISCO™ Package E
Cat.No. 6815
Package Contents ・VISCO
・VISCO Temp Controller Complete Constant temp + UL set(VISCO）
VISCO™

Digital viscometer VISCO™ Package E

Close

Digital viscometer VISCO™-895 Package E

VISCO™-895 $3,980.00 USD
拡大画像
It is a package version of the VISCO-895 main unit (including accessories) and the VISCO Temp Controller Complete constant temperature + low viscosity measurement set (VISCO).
Specifications
Model VISCO™-895 Package E
Cat.No. 6835
Package Contents ・VISCO-895
・VISCO Temp Controller Complete Constant temp + UL set(VISCO）
VISCO™-895

Digital viscometer VISCO™-895 Package E

Close

VISCO™ Temp Controller

Temp Controller
拡大画像
A lightweight and compact constant temperature device that does not require water circulation. This product can be used with VISCO / VISCO895. To measure low viscosity, select "Temp Controller Complete constant temperature + low viscosity set (VISCO)". This product does not include the viscometer body, so it must be purchased separately. There is also a great value package that comes with a viscometer.
Specifications
Model Temp Controller
Cat.No. 6900
Temperature setting range Temperature range 5℃～90℃
（Upper limit　Ambient temperature+50℃、Lower limit　Ambient temperature-10℃）
Power Supply AC100-240V　50/60Hz
Dimensions & Weight Main unit：130（W）×130（D)×162（H)mm Approx.2.7kg
Operation part：130（W）×130（D)×82（H)mm Approx.1.2kg
Temp Controller

VISCO™ Temp Controller

Close

VISCO™ Temp Controller Complete All set

Temp Controller Complete
拡大画像
A lightweight and compact constant temperature device that does not require water circulation. This product is a recommended product that can be used with all VISCO, VISCO895, and VISCO (B) L. This product does not include the viscometer body, so it must be purchased separately. There is also a great value package that comes with a viscometer.
Specifications
Model Temp Controller Complete All set
Cat.No. 6901
Temperature setting range Temperature range 5℃～90℃
（Upper limit　Ambient temperature+50℃、Lower limit　Ambient temperature-10℃）
Power Supply AC100-240V　50/60Hz
Dimensions & Weight Main unit：130（W）×130（D)×162（H)mm Approx.2.6kg
Operation part：130（W）×130（D)×82（H)mm Approx.1.2kg
Temp Controller Complete

VISCO™ Temp Controller Complete All set

Close

VISCO™ Temp Controller Complete UL set VISCO

Temp Controller Complete
拡大画像
A lightweight and compact constant temperature device that does not require water circulation. This product can be used with VISCO / VISCO-895. It can be used widely from low viscosity to high viscosity. This product does not include the viscometer body, so it must be purchased separately.
There is also a great value package that comes with a viscometer.
Specifications
Model Temp Controller Complete UL set VISCO
Cat.No. 6903
Temperature setting range Temperature range 5℃～90℃
（Upper limit　Ambient temperature+50℃、Lower limit　Ambient temperature-10℃）
Power Supply AC100-240V　50/60Hz
Dimensions & Weight Main unit：130（W）×130（D)×162（H)mm Approx.2.6kg
Operation part：130（W）×130（D)×82（H)mm Approx.1.2kg
Temp Controller Complete

VISCO™ Temp Controller Complete UL set VISCO

Close
